Single Column Rubber Plastic Tensile Testing Machine

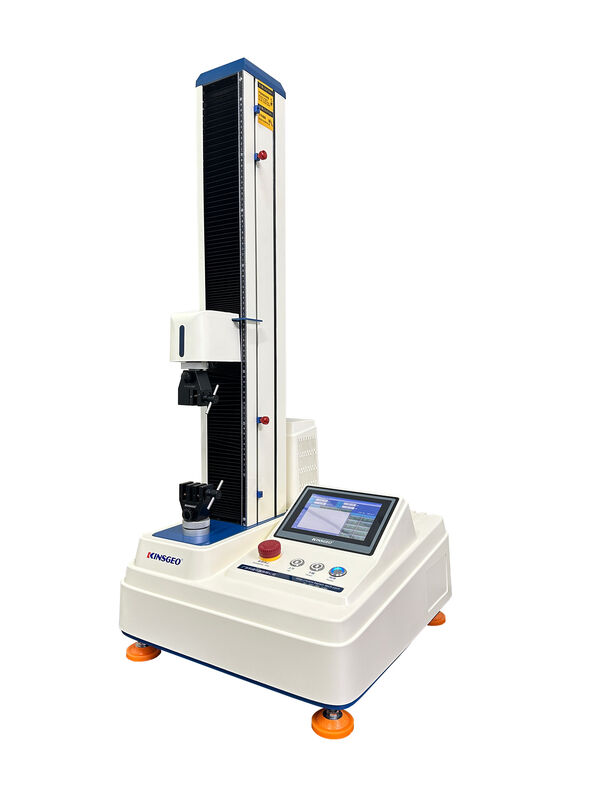

Large Image : Single Column Rubber Plastic Tensile Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065A-N

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/2900/SET
Delivery Time:	15 work days
Payment Terms:	T/T,D/A
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	AC220V 50Hz	Weight:	35kg
Product Name:	Computer Control Single Column Universal Testing Machine	Power Supply:	Can Be Customized
Standard:	BS.EN.ASTM.ISO	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Electronic Universal Tensile Tester	Capacity:	20
Stroke:	650mm(excluding Clamp)	Resolution:	1/50000
Operation:	Computer Windows Operation
Highlight:	single column tensile testing machine , rubber plastic testing machine , universal tensile testing machine

This machine is equipped with various fixtures to test the 900 and 1800 peel strengths, as well as the release force of adhesive tape and self-adhesive label products. This is to consider the adhesion performance of adhesive tape products. It can also test the tensile strength of the substrate. Additionally: This instrument can be operated and edited through software, and can perform tests such as pressure and tension.

Technical Specifications

Design Standards	ASTM D3330 FINAT GB/T2792 PSTC
Model	KJ-1065A
Capacity	1, 2kg (optional)
Stroke	650mm
Speed Range	0.5-500mm/min adjustable
Test Space	120mm MAX
Accuracy	±0.5%
Resolution	1/50,000
Motor	Adjustable speed motor
Display	Force and elongation display
Dimensions (W×D×H)	50×50×120cm
Optional Accessories	Stretcher, air clamp
Weight	35kg
Power	1PH, AC220V, 50/60Hz

Product Images

Tag:

Contact Person: Miss. Silivia Zhang

Tel: 86-13925519875

Fax: 86-0769-28638013
