100N Peel Strength Tester Adhesive Peel Testing Machine Conforms to ASTM D903 ASTM D3330

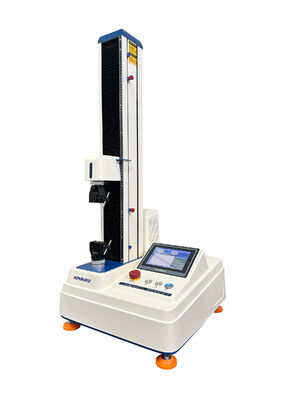

Large Image : 100N Peel Strength Tester Adhesive Peel Testing Machine Conforms to ASTM D903 ASTM D3330

Product Details:

Place of Origin:	CHINA
Brand Name:	KINSGEO
Certification:	ISO,CE and etc,
Model Number:	KJ-1067

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export wooden case
Delivery Time:	5 Working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 Sets Per Months

Contact Now

Detailed Product Description

Product Name:	Constant Temp.&Humidity Peel Strength Tester	Load Accuracy:	0.5%
Testing Speed:	0.5～500mm/min	Power System:	Panasonic AC Servo Motor
Range Of Humidity:	20%RH～98%RH	Range Of Temperature:	-40 Degree~150 Degree
Capacity:	5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg	Warranty:	12 Months
Highlight:	100N peel strength tester machine , adhesive peel testing machine ASTM , universal testing machine for adhesives

High-Precision Peel Strength Testing Machine Computer Data Analysis

Standard

ASTM D3330 FINAT GB/T2792 PSTC

Applications:

Equipped with different fixtures, this machine can perform 90° peel strength test, 180° peel strength test and release force test for adhesive tapes, self-adhesive labels and similar products. It is used to evaluate the adhesion performance of tape products. It can also test the tensile strength of substrates.

In addition, this instrument can be programmed and operated through software to perform pressure and tensile tests.

Test Accuracy:

Minimum test resolution: 0.5g/25mm, making it suitable for electronic materials such as adhesive tapes, protective films, release papers and release films.

Technical Parameter

Technical parameter for Tensile Testing Machine
Capacity	5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg
Degree of load decomposition	1/25,000
Load accuracy	0.5%
Testing speed	0.5～500mm/min
Power system	Panasonic AC servo motor and driver
Software feature	Unit selection: g, kg, N, KN, LB
Technical parameter for High-low Temperature Control System
Model	High-low temperature type
Range of temperature control	Customized
Range of humidity	20%RH～98%RH
Control stability	±2.5%RH, 1℃
Distribution uniformity	±3%RH, ±1℃
Control of temperature and humidity	Korean TIMI880 programmable touch screen controller
Size of inner box	40×40×70cm(customized)
Power	1φ, AC220V/50Hz

KEJIAN Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1. Device installation

2. Equipment Operation Test Technology training

3. Equipment Calibration

4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1. Product Instruction;

2. Product operation instruction/video;

3. Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;

4. Artificial free door-to-door service.

100N Peel Strength Tester Adhesive Peel Testing Machine Conforms to ASTM D903 ASTM D3330 0

FAQ:

1. Why Choose Us?

(1)Focusing on this testing field for over 15 years makes us professional.

(2)Located in Dongguan city--the world class manufacturing city.

(3)After-sales service for 12 months, promptly deal with all the problems.

2. Are you a factory?

Yes, we are.

3. What's the product delivery time?

Within 10 work days after deposit received.

If we have stock, the delivery time will be greatly shortened.

4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
