Simultaneous Extension Tensile Universal Testing Machine

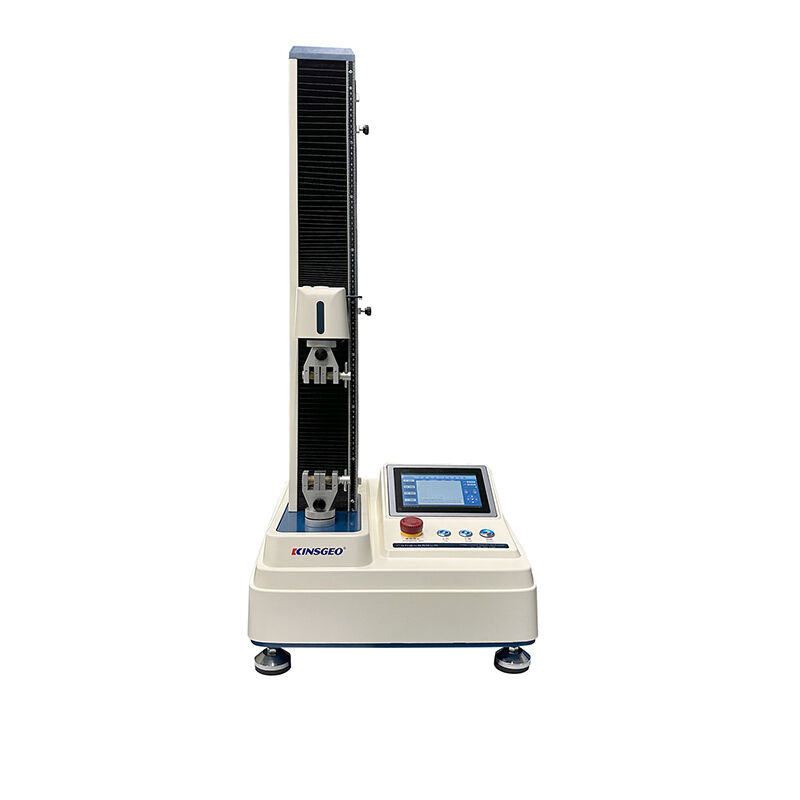

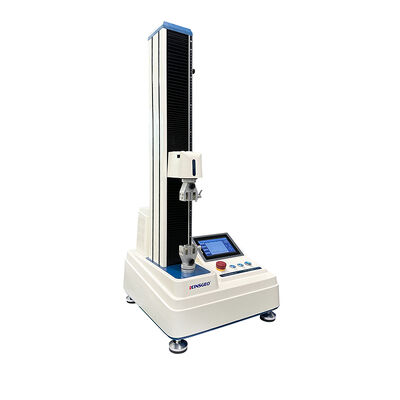

Large Image : Simultaneous Extension Tensile Universal Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/3800/SET
Delivery Time:	15 work days
Payment Terms:	T/T,D/A
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	AC220V 50Hz	Usage:	Universal Testing Machine
Weight:	80kg	Product Name:	Computer Control Single Column Universal Testing Machine
Power Supply:	220V 50Hz	Application:	Universal Tester
Standard:	BS.EN.ASTM	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Electronic Tensile Tester	Capacity:	1.2.5.10.20.50.100.200.500kg Optional
Stroke:	650mm(excluding Clamp)	Resolution:	1/250000
Tester Resolution:	Constant The Resolution	Operation:	Computer Windows Operation
Highlight:	Simultaneous extension tensile tester , Universal testing machine with warranty , Tensile strength testing equipment

Usage

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Product Description

A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

B. Having steady performance, high accuracy, powerful software function and easy operation.

C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.

Technical Specifications

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Model	KJ-1065A
Capacity	1.2.5.10.20.50.100.200.500kg optional
Stroke	650mm
Speed Range	50-400mm/min adjustable, constant speed, 300mm/min
Test Space	120mm MAX
Accuracy	±0.5%
Resolution	1/50,000
Motor	Adjustable speed motor
Display	Windows operation
Dimensions (W×D×H)	(W×D×H) 58×58×125cm
Optional Accessories	Stretcher, air clamp
Weight	80kg
Power	1PH, AC220V, 50/60Hz
