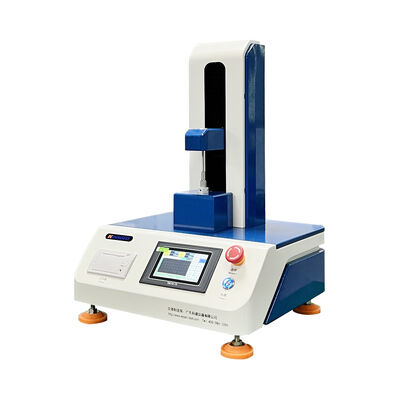

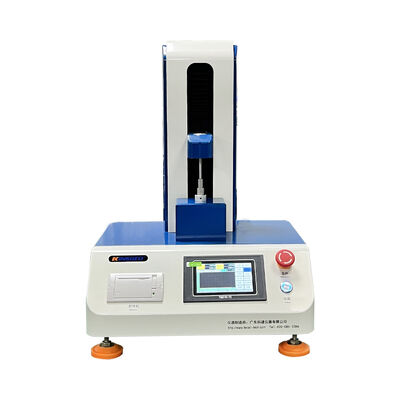

Probe Tack Tester Adhesive Initial Tack Testing Machine ASTM D3330 FINAT PSTC

Large Image : Probe Tack Tester Adhesive Initial Tack Testing Machine ASTM D3330 FINAT PSTC

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	KEJIAN
Certification:	ISO,CE and etc.
Model Number:	KJ-6034

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiate
Packaging Details:	Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time:	In stock,3-7 working days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	200 sets per month

Contact Now

Detailed Product Description

Measuring Range:	0-100N	Measurement Accuracy:	±1%
Weight:	About 23kg	Size (HWD) Cm:	553035cm
Testing Speed:	0.5～5,000mm/min	Power:	220V, 50HZ
Highlight:	Probe tack tester adhesive testing machine , Initial tack testing equipment ASTM D3330 , Peel adhesion tester FINAT PSTC compliant

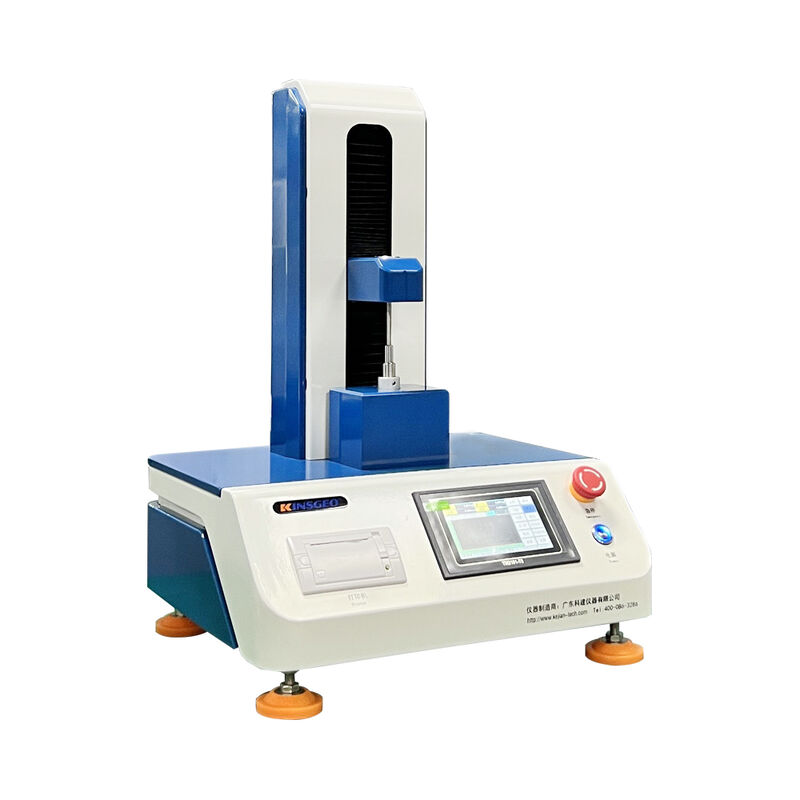

KJ-6034N Computerized Probe Method Initial Adhesion Tester

The KJ-6034N computerized probe-based initial adhesion tester, featuring a compact and refined structural design with imported core components, delivers a high-precision and highly stable solution for initial adhesion testing. Specifically designed for accurate measurement of initial adhesion force in various adhesive products, it fully complies with international authoritative standards and is widely applicable in diverse scenarios such as research institutions, import-export enterprises, and inspection and quarantine agencies, serving as a core enabling device for R&D, quality control, and compliance testing in the adhesive industry.

Parameter Name	Specific Specifications
Measuring range	0–100 N, meeting the initial adhesion testing requirements for most adhesive products and compatible with products of various viscosity grades.
Certainty of measurement	The measurement error is less than ±1%. Paired with imported sensors, the data is precise and the error is controllable.
End of test	Automatically record the maximum tensile force required for sample detachment from the probe, simultaneously document the mode of sample failure, ensuring complete and traceable data for subsequent analysis and archiving.
Measurement speed	600 mm/min (adjustable), flexibly accommodating testing requirements for various samples to ensure testing versatility
Speed Accuracy	The error is within ±1%, with stable operation and precise, controllable speed, ensuring consistent testing results.
Probe Specifications	A 5 mm diameter planar precision grinding probe with high grinding accuracy and uniform contact, eliminating the impact of probe wear on test results.
Fitting plate weight	200 g, meeting standard requirements, ensuring uniform contact pressure between the probe and the sample to guarantee standardized testing.
Machine size	Measuring 55 cm in height × 30 cm in width × 35 cm in depth, it features a compact structure that saves storage space and is suitable for various laboratory settings.
Machine weight	23 kg, lightweight and easy to transport, facilitating equipment placement, movement, and daily maintenance
Use power supply	220V,50HZ,

Probe Tack Tester Adhesive Initial Tack Testing Machine ASTM D3330 FINAT PSTC 0
