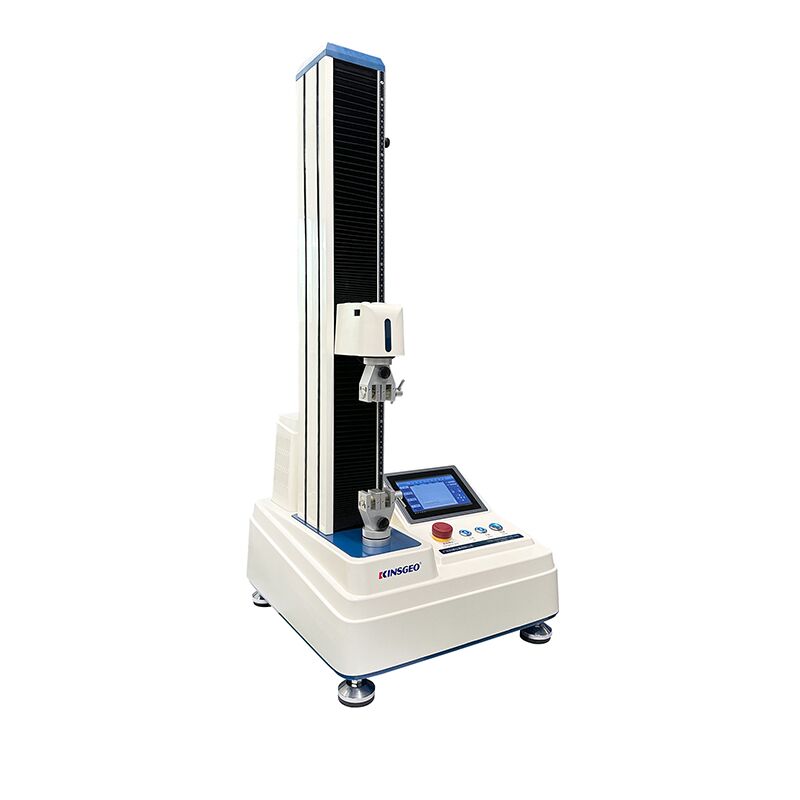

ASTM Single-column Film Tensile Testing Machine High-precision Tensile Testing Machine

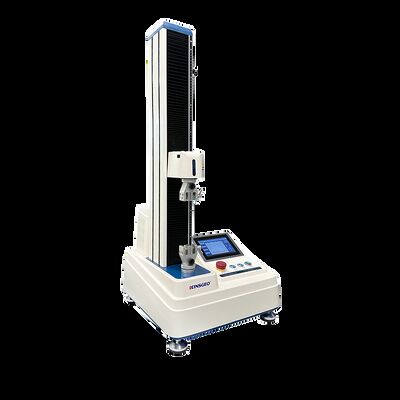

Large Image : ASTM Single-column Film Tensile Testing Machine High-precision Tensile Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/3700/SET
Delivery Time:	15 work days
Payment Terms:	T/T,D/A
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	AC220V 50Hz	Usage:	Universal Tensile Tester
Weight:	70kg	Product Name:	Computer Control Single Column Universal Testing Machine
Power Supply:	Can Be Customized	Application:	Universal Tester
Standard:	BS.EN.ASTM	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Electronic Universal Testing Machine	Capacity:	20
Stroke:	650mm(excluding Clamp)	Resolution:	1/250
Tester Resolution:	Constant The Resolution	Operation:	Computer Windows Operation
Highlight:	ASTM single-column tensile testing machine , high-precision film tensile tester , universal testing machine with ASTM compliance

Uses:

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Design standard:

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Character:

1 That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

2 Have steady performace, high accuracy, powerful software function and easy operation.

3 Use the USA high-precision load cell.

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Model	KJ-1065A-N
Capacity	5, 10, 20kg (optional)
Stroke	650mm
Speed Range	0.1-500mm/min adjustable, constant speed, 300mm/min
Test Space	120mm MAX
Accuracy	±0.5%
Resolution	1/500,000
Motor	Adjustable speed motor
Display	Force and elongation display
Dimensions (W×D×H)	50×50×120cm
Optional Accessories	Stretcher, air clamp
Weight	60kg
Power	1PH, AC220V, 50/60Hz

Product Images
