Customized Multi-Station Universal Testing Machine with Computer Control System and ±0.5% Accuracy

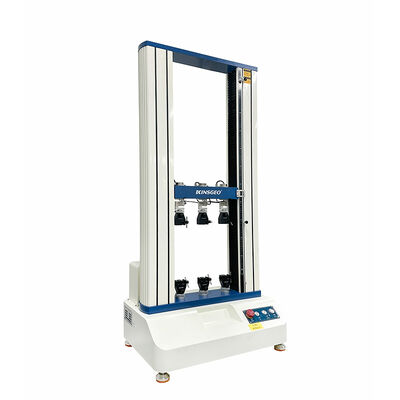

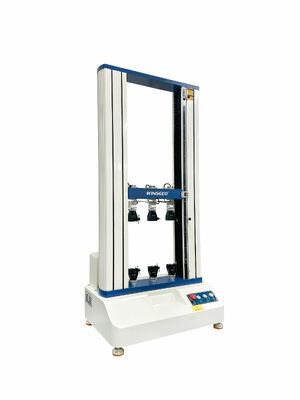

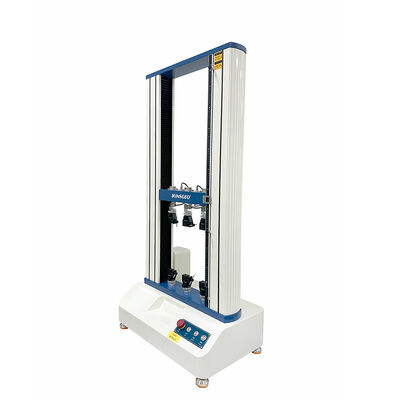

Large Image : Customized Multi-Station Universal Testing Machine with Computer Control System and ±0.5% Accuracy

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1066

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/6800/SET
Delivery Time:	15 work days
Payment Terms:	T/T,D/P
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Accuracy:	±0.5%	Control System:	Computer Control System
Data Acquisition:	Computer Software	Data Output:	USB/RS232/RS485
Data Processing:	Real-time Data Processing	Display:	Computer Display
Load Capacity:	50-1000kN	Material:	Steel
Power Supply:	AC220V/50Hz	Product Name:	Universal Testing Machines
Safety Device:	Overload Protection	Speed Range:	0.1-500mm/min
Weight:	500kg	Power:	Electronic,Hydraulic,AC 220 V,AC220V 50Hz
Usage:	Universal Testing Machine,Tensile Testing Machine,Rubber Tensile Tester	Product Name:	Computer Control Double Column Universal Testing Machine,10T Computer Servo Universal Tensile Testing Machine Price
Highlight:	Computer Control Universal Testing Machine , Multi-Station Materials Testing Machine , ±0.5% Accuracy Tensile Testing Machine

Customized Multi-Station Universal Testing Machine

This advanced materials testing machine is designed for comprehensive testing of tensile strength, compression, bending, peel resistance, shearing force, modulus of elasticity, and elongation properties. It serves a wide range of materials including metals, plastics, rubber, textiles, synthetic chemicals, wire and cable, leather, packaging materials, tapes, films, solar cells, and more.

Key Characteristics

Robust structure featuring paint-coated aluminum blanking plates with high-precision, low-resistance ball screws and zero-clearance guide rods for enhanced loading efficiency and structural rigidity
Panasonic servo motor ensures high efficiency, stable transmission, and low noise operation with speed accuracy controlled within 0.5%
Integrated business computer with specialized testing software for comprehensive parameter control, data collection, analysis, result display, and printing capabilities

Standard Accessories

Customized grips tailored to specific sample requirements
Comprehensive software suite for test control, data acquisition, and reporting
English operation tutorial video
Table computer selection
Extended measurement capabilities as requested

Software Features

Windows-based platform with intuitive dialog forms for easy parameter setup
Single-screen operation eliminates screen switching requirements
Multi-language support including Simplified Chinese, Traditional Chinese, and English
Flexible test sheet mode configuration
Real-time test data display
Multiple curve data comparison through translation and contrast methods
Comprehensive unit of measurement support with metric and imperial system switching
Automatic calibration functionality
User-defined test method creation
Advanced test data arithmetic analysis
Automatic magnification adjustment for optimal graphic display

Technical Specifications

Design Standards	GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D5459, ASTM D5458, ASTM D5748, ASTM D-882, ASTM D 1922, ASTM D638, ASTM D412
Model	KJ-1066A
Speed Range	0.5-1000mm/min
Motor	Japan Panasonic Servo Motor
Capacity Options	5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000KG optional
Resolution	1/250,000
Effective Testing Space	400mm MAX
Accuracy	±0.5%
Operation Method	Windows XP, Win7 operation, computer control
Standard Accessories	Computer, printer, system operation manual
Optional Accessories	Customized clamps, force sensors, printer, operation manual
Weight	400KG
Dimensions	(W×D×H) 80×50×150CM
Power Requirements	1PH, AC220V, 50/60Hz
Safety Features	Upper and lower stroke protection, force protection system, emergency stop device

About Guangdong KeJian Testing Instrument Co., LTD.

Founded in 2003, Guangdong KeJian Testing Instrument Co., LTD. is a professional enterprise specializing in research, development, and production of precision testing instruments. We provide comprehensive testing solutions with our professional factory equipment, dedicated technology R&D team, and excellent production and management capabilities. We continuously deliver satisfactory products and services to our customers and have become a leading supplier in the instrumentation industry.
