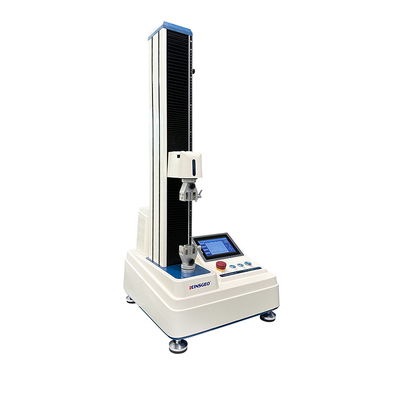

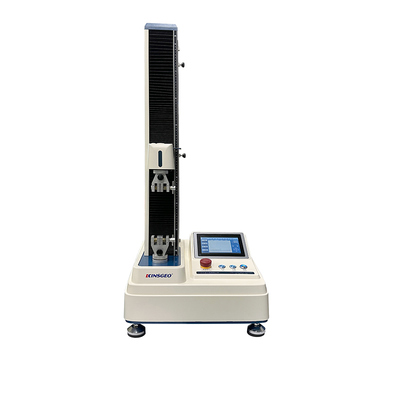

High Precision Universal Testing Machine with ±0.5% Accuracy and 650 mm Stroke for Tensile and Peel Testing

High Precision Universal Testing Machine with ±0.5% Accuracy and 650 mm Stroke for Tensile and Peel Testing
High Precision Universal Testing Machine with ±0.5% Accuracy and 650 mm Stroke for Tensile and Peel Testing

Large Image :  High Precision Universal Testing Machine with ±0.5% Accuracy and 650 mm Stroke for Tensile and Peel Testing

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1065A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/3800/SET
Packaging Details: wooden case packing
Delivery Time: 15 work days
Payment Terms: T/T,D/A
Supply Ability: 60Sets/month
Contact Now
Detailed Product Description
Power: Electronic,AC 220 V Usage: Universal Testing Machine,Tensile Testing Machine
Weight: 90kg Product Name: Computer Control Single Column Universal Testing Machine
Power Supply: Can Be Customized Application: Universal Tester
Standard: BS.EN.ASTM Motor: Panasonic Servo Motor
Warranty: 1 Year Accuracy: +/-0.5%
Name: Universal Leather Tensile Strength Test Machine Capacity: 20
Stroke: 650 Mm (contain Clamps) Resolution: 1/250
Test Space: 120mmMAX Operation: Computer Windows Operation
Highlight:

High Precision Universal Testing Machine

,

±0.5% Accuracy Tensile Testing Machine

,

650 mm Stroke Peel Testing Machine

High Precision Tape Peel Testing Machine
Key Characteristics
  • Computer-controlled operation with specialized testing software for comprehensive parameter control, data collection, analysis, and reporting
  • Stable speed operation with high accuracy and user-friendly interface
  • Equipped with USA-manufactured high-precision load cell
Software Features
  • Windows-based platform with intuitive dialog-based parameter setting
  • Single-screen operation eliminates screen switching
  • Trilingual interface (Simplified Chinese, Traditional Chinese, English)
  • Customizable test sheet configuration
  • Real-time test data display
  • Multi-curve comparison through translation or contrast modes
  • Multiple unit systems with metric/imperial conversion
  • Automatic calibration capability
  • User-defined test methods
  • Advanced data analysis functions
  • Automatic graphic scaling for optimal display
Technical Specifications
Design Standards ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632
Model KJ-1065
Speed Range 0.5~5000mm/min
Motor Japan Panasonic Servo Motor
Stroke 1200mm (including grips)
Capacity Options 1, 2, 5, 10, 20, 50, 100, 200, 500kg (optional)
Resolution 1/250,000
Effective Testing Space 120mm MAX
Accuracy ±0.5%
Operation Method Windows operation
Accessories Two pair grips, software
Weight 80KG
Dimensions (W*D*H) 58*58*125cm
Power 1PH, AC220V, 50/60Hz
Safety Features Upper/lower stroke protection, force protection system, emergency stop device
High Precision Tape Peel Testing Machine KJ-1069 model
