Product Details:
Payment & Shipping Terms:
|
| Accuracy: | ±0.5% | Control System: | Computer Control System |
|---|---|---|---|
| Data Acquisition: | High Speed Data Acquisition | Data Analysis: | Data Analysis Software |
| Data Storage: | USB Data Storage | Load Cell: | High Precision Load Cell |
| Power Supply: | 220V/50Hz | Product Name: | Universal Testing Machines |
| Safety Protection: | Overload Protection | Test Speed: | 0.1-500mm/min |
| Testing Range: | 0-100KN | Weight: | 200Kg |
| Power: | AC220V 50Hz | Usage: | Universal Testing Machine |
| Power Supply: | Can Be Customized,220V 50Hz | Application: | Universal Tester |
| Standard: | ASTM E8/A370/ISO 75001 | Motor: | Panasonic Servo Motor |
| Stroke: | 650mm(excluding Clamp) | Measuring Accuracy: | Display The Value ±1%/Display The Value±0.5% |
| Effective Measuring Range: | 0.2%~100%(1grade) /0.4%~100% (0.5 Grade) | Operation: | Computer Windows Operation |

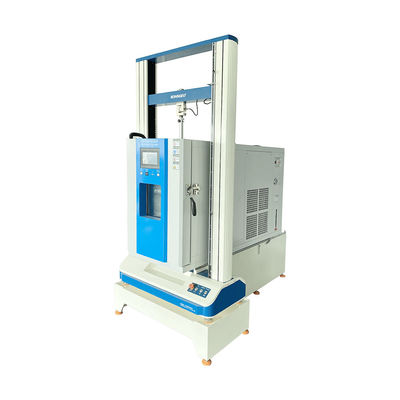

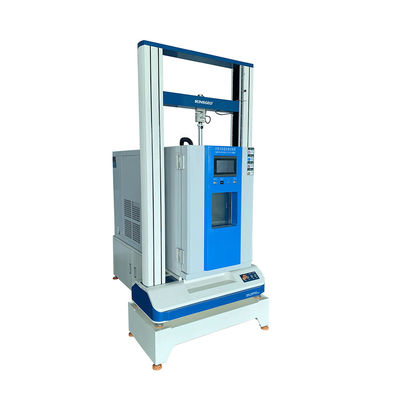

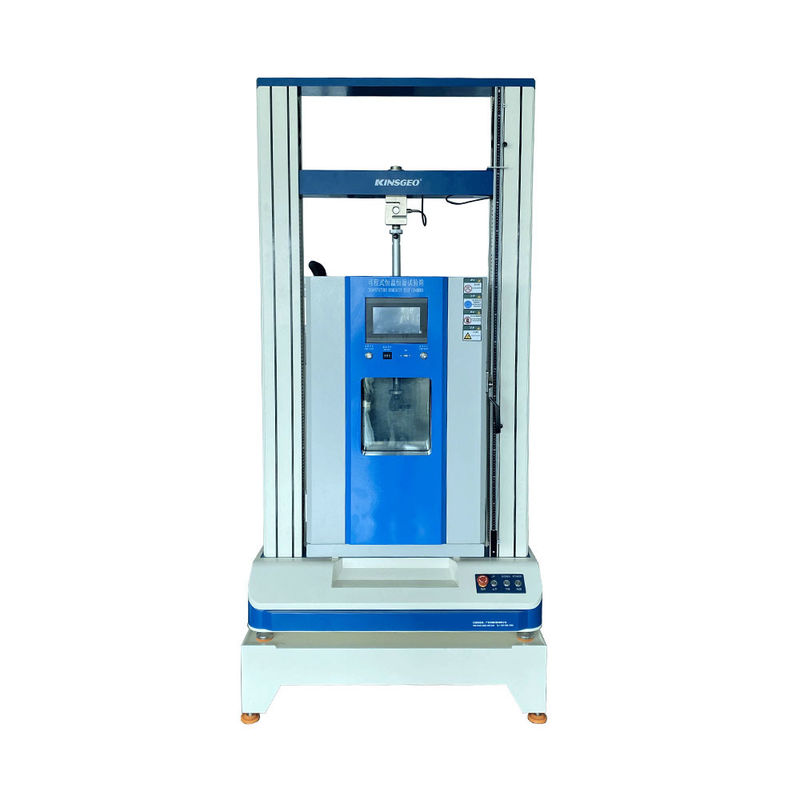

Lab Universal Tensile Testing Machine With Temperature And Humidity Chamber
Usage
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Product Description
A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
B. Having steady performance, high accuracy, powerful software function and easy operation.
C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.
| Range of speed | 0.5-1000mm/min |
| Motor | Japan Servo Motor |
| Capacity choice | 1.2.5.10.20.50.100.200.500kg optional |
| Resolution | 1/250,000 |
| Effective testing space | 120mm max |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Weight | 80KG |
| Dimension | (W×D×H) 58×58×125cm |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
Temperature control system
|
Temperature range |
-50℃～150℃ |
|
Temperature method |
computer P.I.D.automatic control |
|
Humidity range |
20%RH~98%RH |
|
Stability of control |
±2.5%RH,±1℃ |
|
Accuracy of distribution |
±3%RH,±1℃ |
|
Temperature&humidity control |
Korea TEMI880 |
|
Circulatory System |
Wind forced circulation |
|
Heating System |
SUS#304, stainless steel heater |
|
Humidifying System |
Surface evaporation, a transparent structure. |
|
Cooling system |
Fan cooling mode, high efficiency of all sealed compressor |
|
Dehumidifying System |
Freezing latent heat dehumidification mode |
|
Internal&external material |
SUS#304 |
|
Inner dimension: |
(L×W×H)40×40×70cm
|
|
Stroke protection |
Machinery, computer double protection, prevent over preset |
|
Force protection |
system setting |
|
Emergency stop device |
Handling emergencies |
|
Leakage current |
|
|
Compressor overload |
|
|
Over temperature |
Product Design Standard
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453,ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.
