Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic,AC220V 50Hz | Usage: | Tensile Testing Machine |
|---|---|---|---|
| Weight: | 90kg | Power Supply: | 220V 50Hz |
| Application: | Steel,fiber,fabric,universal Tester | Standard: | BS.EN.ASTM,ASTM E8/A370/ISO 75001 |
| Motor: | AC Motor | Warranty: | 1 Year |
| Accuracy: | +/-0.5% | Capacity: | 20 |
| Stroke: | 650mm(excluding Clamp) | Test Space: | 120mmMAX |
| Tester Resolution: | Constant The Resolution | Effective Measuring Range: | 0.2%~100%(1grade) /0.4%~100% (0.5 Grade) |
| Operation: | LCD Panel | Product Name: | 500N Electronic Universal Tensile Testing Machine |

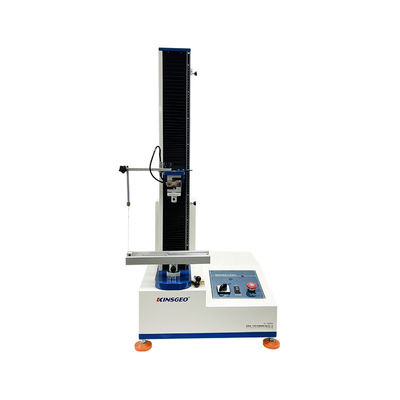

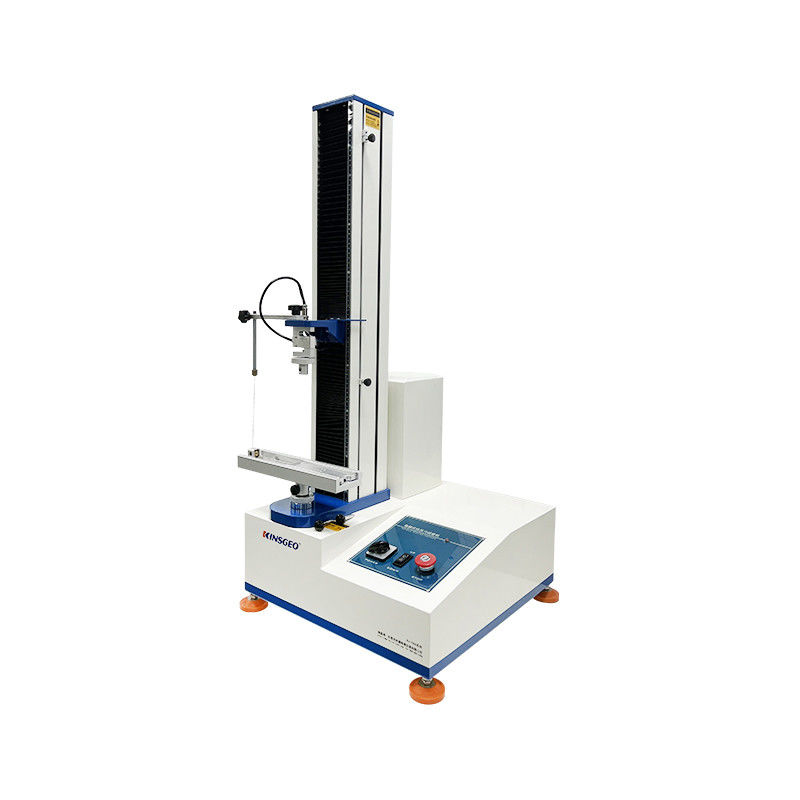

1000N Universal Testing Machine Plastic Rubber Steel Ropes Metal Material UTM Tensile Strength Tester
KJ-1065BUniversal Tensile Strength Tester.pdf
Uses
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character
Have steady performace, high accuracy, and easy operation.
Accessories
1.Suitable Grips that meet customer sample need.
2.Special peeling tools for peel test in tape&film industry.
3.English operation teach video.
Specifications
| Design Standards |
ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7
|
| Model |
KJ-1065C
|
| Capacity | 1,2,5,10,20,50,100,200kg optional |
| Stroke | 650mm |
|
Range of speed |
50～400mm/min adjustable,constant speed, 300mm/min |
| Test space | 120mmMAX |
| Accuracy |
±1.0%
|
| Resolution | 1/50,000 |
| Motor | adjustable speed motor |
| Display | force and elongation display |
| Dimention | (W×D×H)50×50×120cm |
| Optional accessories | stretcher, air clamp |
| Weight | 60kg |
| Power | 1PH, AC220V, 50/60Hz |
Safety Device:
Stroke protection: Machinery, computer double protection, prevent over preset
Emergency stop device: Handling emergencies.
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
Contact Person: Miss. Silivia Zhang
Tel: 86-13925519875
Fax: 86-0769-28638013
