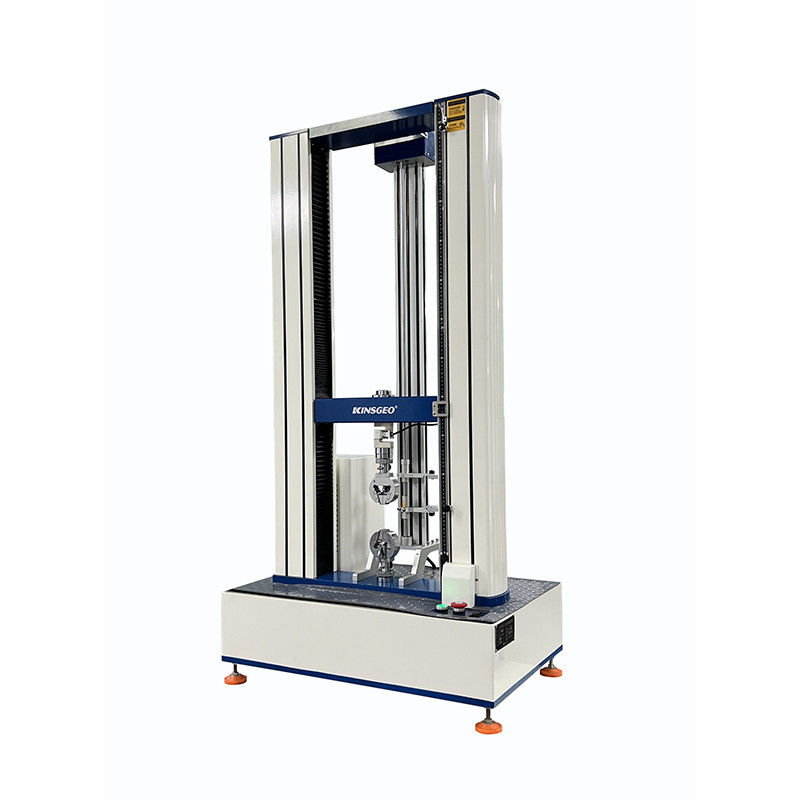

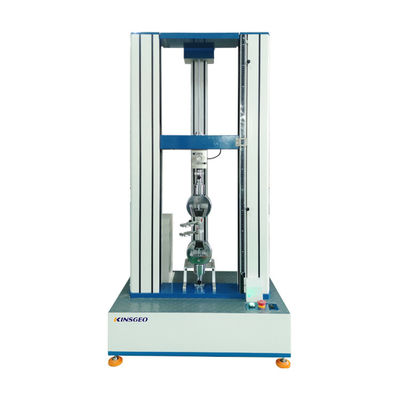

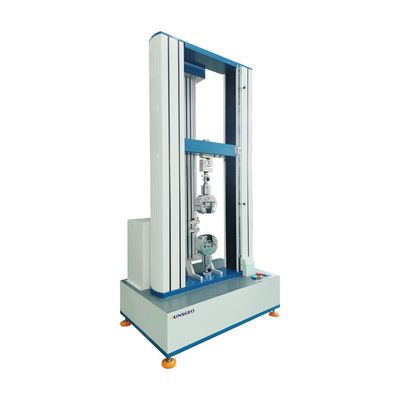

5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester

Certification
China GUANGDONG KEJIAN INSTRUMENT CO.,LTD certification
China GUANGDONG KEJIAN INSTRUMENT CO.,LTD certification
Kejian Universal Testing Machine quality is the best,after-sale service is also great.

—— Oscar Vargas

Paper Testing Machine is one of the best product.

—— Kritsana Praikongkadhrama

I'm Online Chat Now

5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester

5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester
5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester 5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester 5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester

Large Image :  5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1066
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/6500/SET
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30Sets/month
Detailed Product Description
Power: AC220V 50Hz Usage: Universal Testing Machine
Weight: 216kg Product Name: High Quality 50kn Electronic Universal Tensile Testing Machine
Power Supply: 220V 50Hz Application: Steel,universal Tester
Standard: ASTM E8/A370/ISO 75001 Motor: Panasonic Servo Motor,Panasonic AC Servo Motor And Drive
Warranty: 1 Year Accuracy: +/-0.5%
Name: Electronic Universal Testing Machine Capacity: 200
Stroke: 650mm(excluding Clamp) Test Space: 120mmMAX
Measuring Accuracy: The Value ±1%/ The Value±0.5% Effective Measuring Range: 0.2%~100%(1 Grade)/0.4%~100%(0.5 Grade)
Operation: Computer Windows Operation
Highlight:

3 Point Bending Force Tester Instrument

,

3 Point Bending Force Tester

,

5000N compressive strength test apparatus

Uses

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,leather,package,tape,film,solar cell,etc.

Character

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.

2. Use servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be control in 0.5%.

3. That using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

Accessories

1.Suitable Grips that meet customer sample need.

2.Software for test control,data acquisition and report.

3.English operation teach video.

4.Table computer is select.

5.Extend meter as customer request.

Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;



Specification

Design Standards

GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM,D5459,ASTM D5458,ASTM D5748,ASTM D-882,ASTM D 1922,ASTM D638,ASTM D412.



Model KJ-1066A
Range of speed 0.5-1000mm/min
Motor Japan Servo Motor
Capacity choice 5,10,20,50,100,200,500,1000,2000,5000KG optional
Resolution 1/250,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7 operation,computer control
Accessories computer, printer, system operation manual
Optional accessories customized clamps by appointed, force sensors, , printer, and operation manual
Weight 400KG
Dimention (W×D×H)80×50×150CM
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies



5000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester 05000N Spring Tensile Compression Strength Testing Instrument 3 Point Bending Force Tester 1
