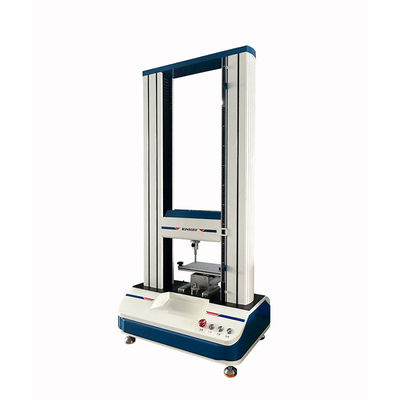

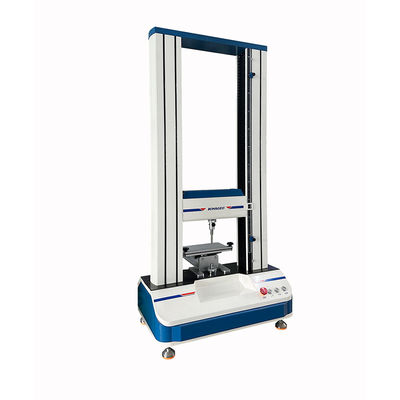

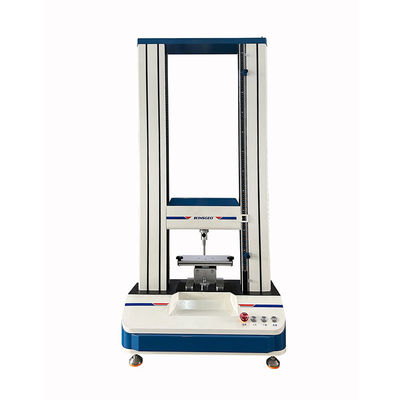

Fabric Tensile Strength Tester Universal pulling force Testing Machine 100kg peeling force tester

Fabric Tensile Strength Tester Universal pulling force Testing Machine 100kg peeling force tester
Fabric Tensile Strength Tester Universal pulling force Testing Machine 100kg peeling force tester Fabric Tensile Strength Tester Universal pulling force Testing Machine 100kg peeling force tester Fabric Tensile Strength Tester Universal pulling force Testing Machine 100kg peeling force tester

Large Image :  Fabric Tensile Strength Tester Universal pulling force Testing Machine 100kg peeling force tester

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1066A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/6800/SET
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30Sets/month
Detailed Product Description
Power: AC220V 50Hz Usage: Universal Testing Machine,Tensile Testing Machine,Rubber Tensile Tester
Weight: 216 Product Name: Double Column
Power Supply: 220V 50Hz Application: Universal Tester
Standard: ASTM E8/A370/ISO 75001 Motor: Panasonic Servo Motor
Warranty: 1 Year Accuracy: +/-0.5%
Name: Universal Leather Tensile Strength Test Machine,electronic Universal Testing Machine Capacity: 20
Stroke: 650mm(excluding Clamp) Measuring Accuracy: The Value ±1%/ The Value±0.5%
Operation: Computer Windows Operation

Project Introduction:

Domestic microcomputer control electronic universal test machine started in the early 1990s. In order to improve the technical level of enterprise products, the company has introduced foreign advanced technology, which jumped the company's product technology level to a new level.



Use area:

This product is widely used in the mechanical performance test of pulling, pressure and bending shear of metal and non-mechanical materials. With a wide variety of accessories, it can also be used for the mechanical performance tests of profiles and components. In the test field of rope, belt, silk, rubber, plastic and other materials, it also has a very wide application prospect. It is applicable to quality supervision, teaching and research, aerospace, steel metallurgy, automobile, construction materials and other test fields.



Standard:

It meets the requirements of the national standard GB/T228.1-2010 < Room Temperature Extension Test Method of Metal Materials and GB/T7314-2005 < Metal Compression Test Method, and meets the data processing of GB, ISO, ASTM, DIN and other standards. Can meet the user's requirements and the standards provided.



Design Standards

GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM D638,ASTM D412.



Model KJ-1066B
Range of speed 50-500mm/min
Motor AV Servo Motor
Capacity choice 2000KG
Resolution 1/150,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7 operation,computer control
Accessories computer, printer, system operation manual
Optional accessories customized clamps by appointed, force sensors, , printer, and operation manual
Weight 400KG
Dimention (W×D×H)80×50×150㎝
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies
