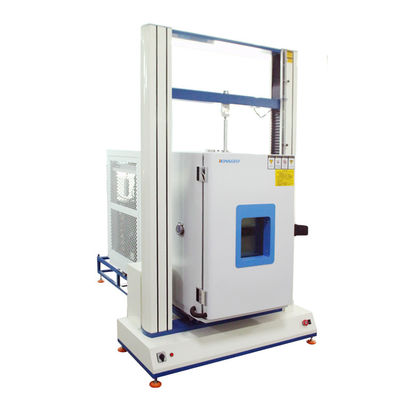

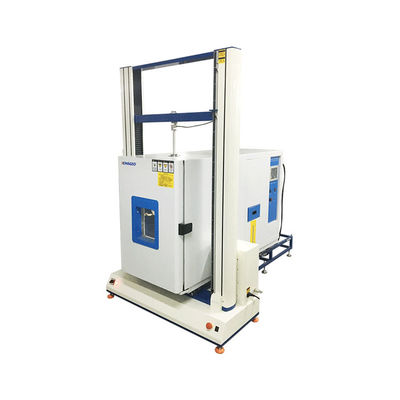

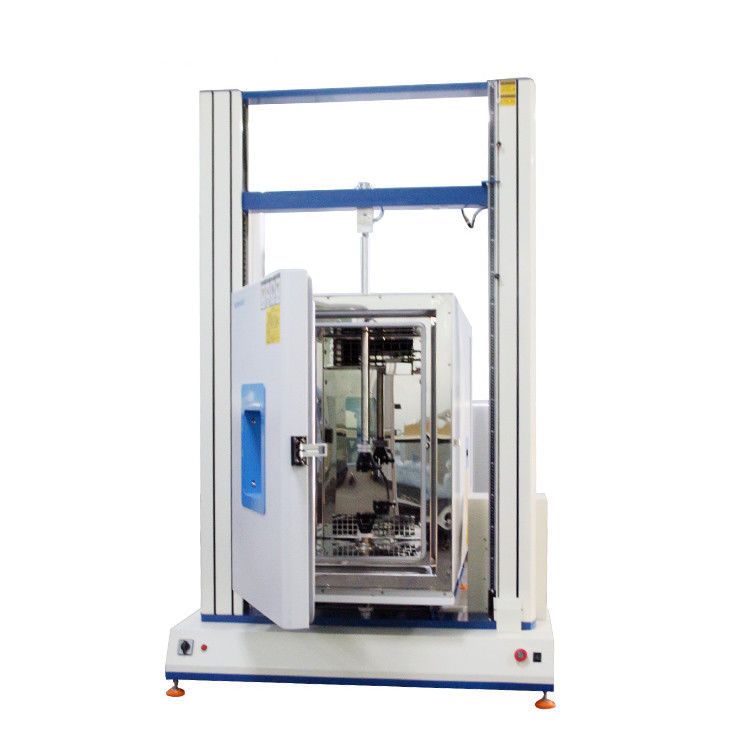

Lab universal testing machine with environment climatic sumulation testing chamber

Lab universal testing machine with environment climatic sumulation testing chamber
Lab universal testing machine with environment climatic sumulation testing chamber Lab universal testing machine with environment climatic sumulation testing chamber Lab universal testing machine with environment climatic sumulation testing chamber

Large Image :  Lab universal testing machine with environment climatic sumulation testing chamber

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1067
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/9800/SET
Delivery Time: 15 work days
Payment Terms: T/T,
Supply Ability: 30Sets/month
Detailed Product Description
Accuracy: ±0.5% Control System: Computer Control System
Data Acquisition: High Speed Data Acquisition Data Analysis: Data Analysis Software
Data Storage: USB Data Storage Load Cell: High Precision Load Cell
Power Supply: 220V/50Hz Product Name: Universal Testing Machines
Safety Protection: Overload Protection Test Speed: 0.1-500mm/min
Testing Range: 0-100KN Weight: 200Kg
Power: AC220V 50Hz Usage: Universal Testing Machine
Power Supply: Can Be Customized,220V 50Hz Application: Universal Tester
Standard: ASTM E8/A370/ISO 75001 Motor: Panasonic Servo Motor
Stroke: 650mm(excluding Clamp) Measuring Accuracy: Display The Value ±1%/Display The Value±0.5%
Effective Measuring Range: 0.2%~100%(1grade) /0.4%~100% (0.5 Grade) Operation: Computer Windows Operation

Lab Universal Tensile Testing Machine With Temperature And Humidity Chamber

Usage

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Product Description

A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

B. Having steady performance, high accuracy, powerful software function and easy operation.

C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.





Range of speed 0.5-1000mm/min
Motor Japan Servo Motor
Capacity choice 1.2.5.10.20.50.100.200.500kg optional
Resolution 1/250,000
Effective testing space 120mm max
Accuracy ±0.5%
Operation method Windows operation
Accessories computer, printer, system operation manual
Optional accessories stretcher, air clamp
Weight 80KG
Dimension (W×D×H) 58×58×125cm
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies



Temperature control system

Temperature range

-50℃~150℃

Temperature method

computer P.I.D.automatic control

Humidity range

20%RH~98%RH

Stability of control

±2.5%RH,±1℃

Accuracy of distribution

±3%RH,±1℃

Temperature&humidity control

Korea TEMI880

Circulatory System

Wind forced circulation

Heating System

SUS#304, stainless steel heater

Humidifying System

Surface evaporation, a transparent structure.

Cooling system

Fan cooling mode, high efficiency of all sealed compressor

Dehumidifying System

Freezing latent heat dehumidification mode

Internal&external material

SUS#304

Inner dimension:

(L×W×H)40×40×70cm



Stroke protection

Machinery, computer double protection, prevent over preset

Force protection

system setting

Emergency stop device

Handling emergencies

Leakage current

Compressor overload

Over temperature



Product Design Standard

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453,ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.Lab universal testing machine with environment climatic sumulation testing chamber 0
