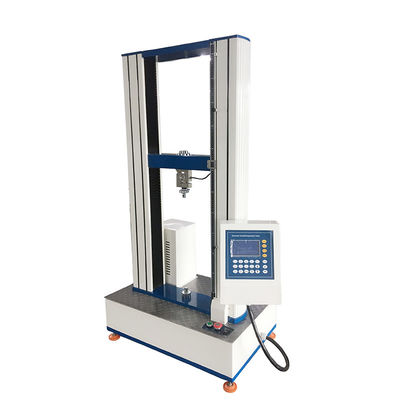

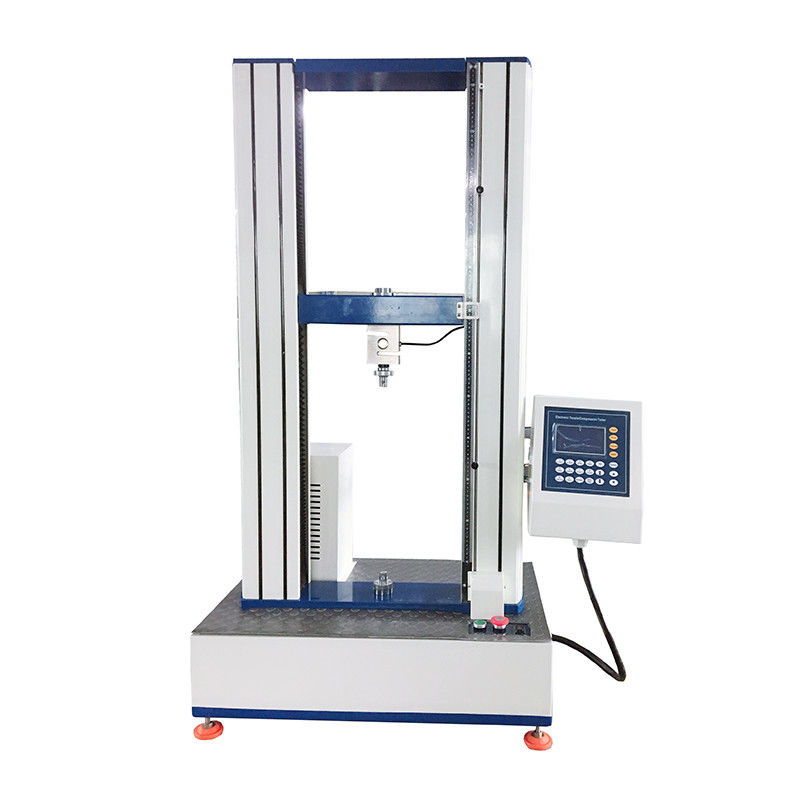

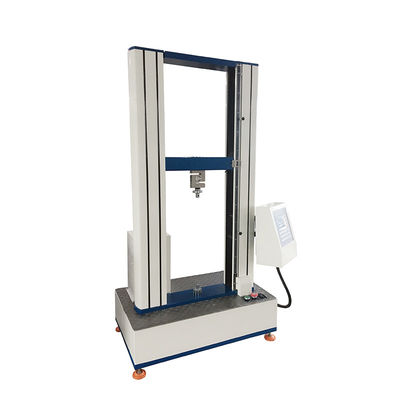

Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine

Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine
Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine

Large Image :  Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1066C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/5100/SET
Delivery Time: 10work days
Payment Terms: T/T,
Supply Ability: 30Sets/month
Detailed Product Description
Power: AC220V 50Hz Usage: Universal Testing Machine
Weight: 90kg Product Name: 10T Computer Servo Universal Tensile Testing Machine Price
Power Supply: 220V 50Hz Application: Universal Tester
Standard: ASTM E8/A370/ISO 75001 Motor: Panasonic Sevor Motor
Warranty: 1 Year Accuracy: +/-0.5%
Name: Universal Leather Tensile Strength Test Machine Capacity: 200
Stroke: 650mm(excluding Clamp) Test Space: 120mmMAX
Tester Resolution: Constant The Resolution Measuring Accuracy: The Value ±1%/ The Value±0.5%
Effective Measuring Range: 0.2%~100%(1 Grade)/0.4%~100%(0.5 Grade) Operation: Computer Windows Operation
Highlight:

Rubber Steel Tensile Strength Testing Machine

,

Universal Tensile Strength Testing Machine

,

Rubber Steel Tensile Testing Machine

Uses

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,leather,package,tape,

film,solar cell,etc.

Character

KJ-1066C testing machine for instruments built a new design of microcomputer-type top pressure meter. This company completely change traditional material test machine machine Taiwan heavy, and operation complex, and performance single of shortcomings, structure used by senior roast paint processing of aluminum squeeze type seal Board built-in high precision, and low resistance, and no clearance roll strains screw rod and the oriented column; control system data acquisition and the operation speed high, and used double column and double silk rod structure, greatly improve has test efforts, maximum can reached 20,000N. Product performance is stable and reliable, high precision, simple operation and easy to understand.

Accessories

1.Suitable Grips that meet customer sample need.

2.Software for test control,data acquisition and report.

3.English operation teach video.



Specification

Design Standards

GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM D638,ASTM D412.



Model KJ-1066C
Range of speed 50-400mm/min
Motor AV Servo Motor
Capacity choice 5,10,20,50,100,200,500KG optional
Resolution 1/150,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7 operation,computer control
Accessories computer, printer, system operation manual
Optional accessories customized clamps by appointed, force sensors, , printer, and operation manual
Weight 400KG
Dimention (W×D×H)80×50×150㎝
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies

Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine 0Universal Tensile Testing Machine Rubber Steel Tensile Strength Testing Machine 1
