Moblie Phone Tempered Film Glass Mobile Phone Screen Falling Ball Impact Strength Tester

Usage

This machine is mainly used in foam and other buffer material impact resistance evaluation test instrument.

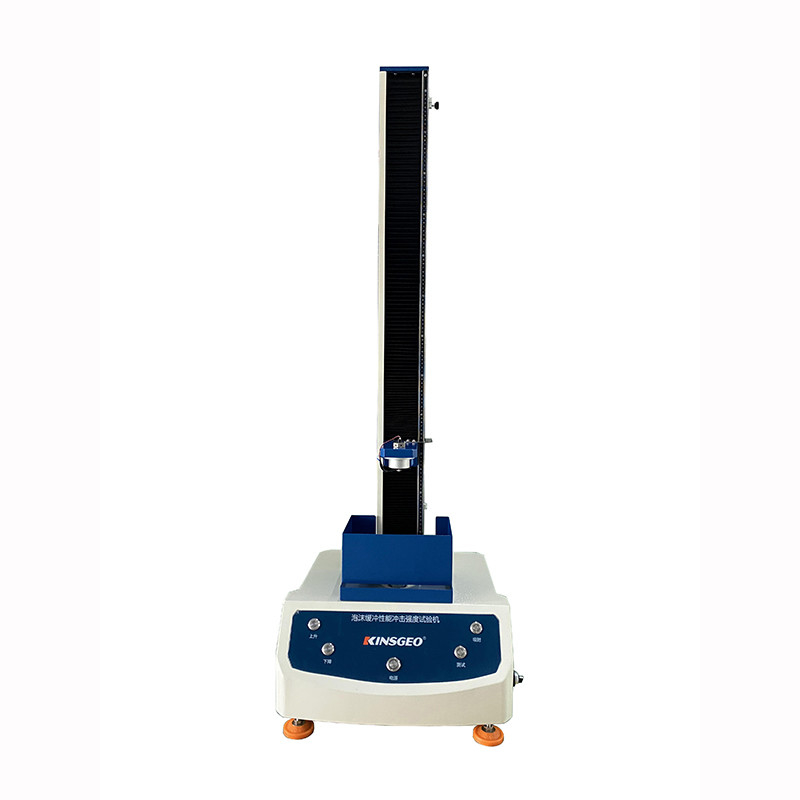

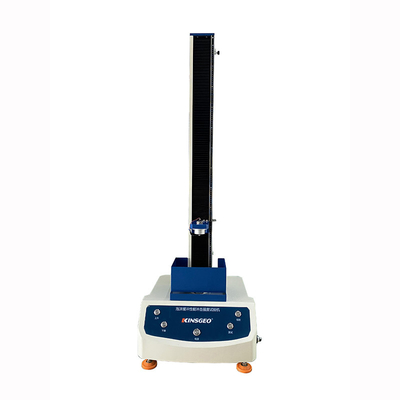

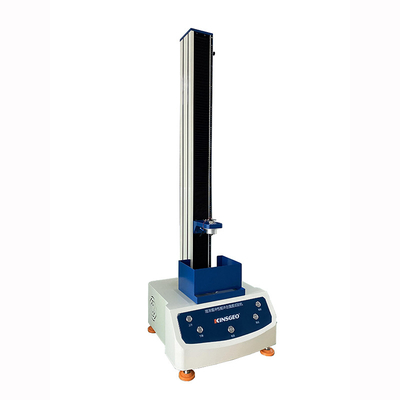

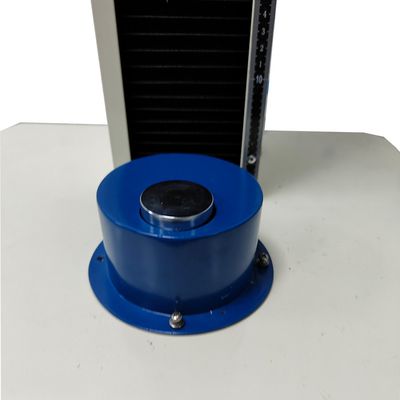

How it works: The steel ball of a certain mass is automatically sucked under the electromagnetic sucker, and is accurately aligned with the laser line drawing device to release the free fall at a certain height. The maximum impact force, maximum impact energy and material absorption energy are measured and recorded before and after the buffer material is placed. The buffering performance of the foam was evaluated. Suitable for mobile phone and other electronic products shock-proof, anti-drop, anti-buffering thin foam, film, rubber sheet, etc.

Product Description

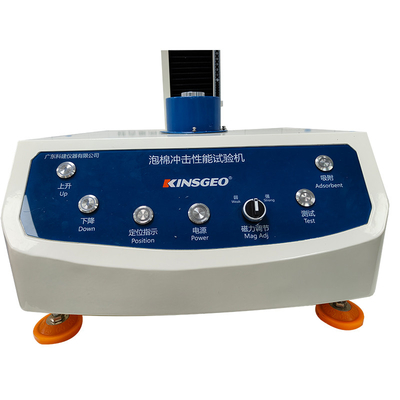

A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

B. Having steady performance, high accuracy, powerful software function and easy operation.

C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.

Product Design Standard

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453,ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.

Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
