Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic,AC 220 V,AC220V 50Hz | Usage: | Universal Testing Machine,Tensile Testing Machine |
|---|---|---|---|
| Weight: | 90kg | Product Name: | Single Column Tensile Tester |
| Application: | Fiber,fabric | Standard: | ASTM E8/A370/ISO 75001 |
| Warranty: | 1 Year | Accuracy: | +/-0.5% |
| Capacity: | 200 | Stroke: | 650mm(excluding Clamp) |
| Test Space: | 120mmMAX | Effective Measuring Range: | 0.2%~100%(1 Grade)/0.4%~100%(0.5 Grade) |
| Operation: | Computer Windows Operation | ||
| Highlight: | Lab Tensile Strength Tester,Thread Breaking Force Tensile Strength Tester |
||

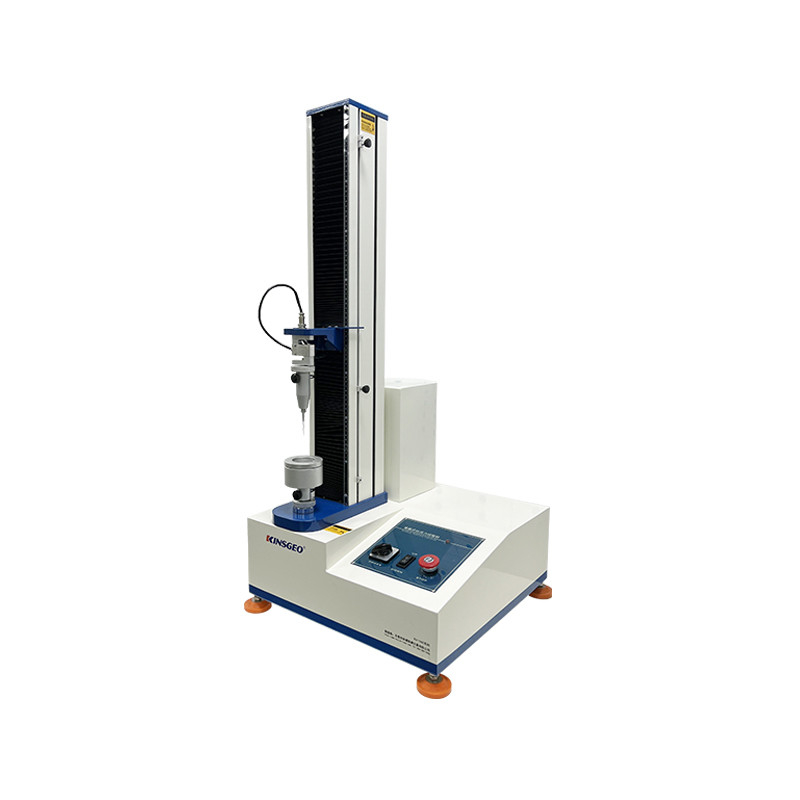

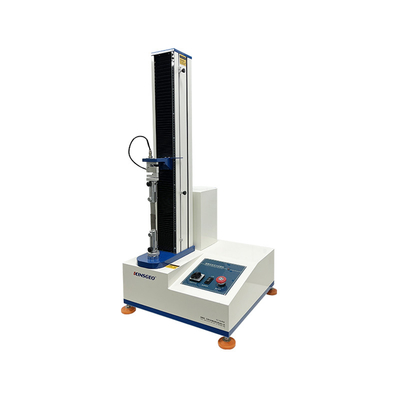

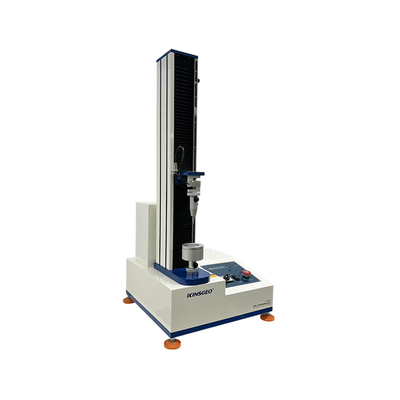

Single Column Fabric Tensile Strength Tester Lab Thread Breaking Force Tester
Usage
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Product Description
A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
B. Having steady performance, high accuracy, powerful software function and easy operation.
C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.
| Range of speed | 0.5-1000mm/min |
| Motor | Japan Panasonic Servo Motor |
| Capacity choice | 1.2.5.10.20.50.100.200.500kg optional |
| Resolution | 1/250,000 |
| Effective testing space | 120mm max |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Weight | 80KG |
| Dimension | (W×D×H) 58×58×125cm |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
