Product Details:
Payment & Shipping Terms:
|
| Power: | 6.5KW | Inner Size(cm):D×W×H: | 50×60×50 |
|---|---|---|---|
| Humidity Range: | 65～98％R.H(adjustable) | Rain Falling Time: | 0～9999min (adjustable) |
| Rain Falling Period: | 1～240minutes，interval（break）,adjustable | Xenon Lamp Total Power: | 1.8KW（lifetime：1600hours） |
| Time Controller: | Imported Programmable Time Computer Integrated Controller | Accuracy Range: | Temperature ±0.1℃,humidity±1％R.H，indicate Accuracy：temperature,±0.1℃,humidity,±1％R.H |
| Temperature Controller: | Imported Microcomputer Temperature Humidity Integration Controller | Voltage Power: | AC380V±10％ 50±0.5Hz 3 Phase 5 Lines |
| Testing Standards: | GB/T2423.24-1995 GB/T16422.2 GB9344 GB/T1865-97 ASTM G 155-04a | Safeguard Protection: | Leakage,short Circuit,over Temperature,short Of Water,motor Overheating,over-current Protection,Backup Data For Power Fail |
| Warranty: | 1 Year | ||
| Highlight: | Blue Climatic Aging Testing Machine,Xenon Lamp Climatic Aging Testing Machine,SUS-304 Climatic Aging Testing Machine |
||

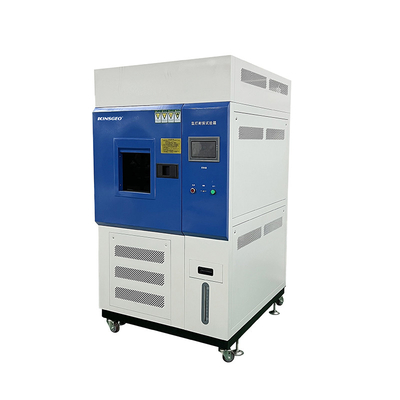

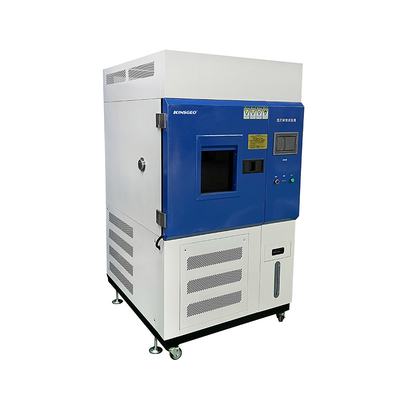

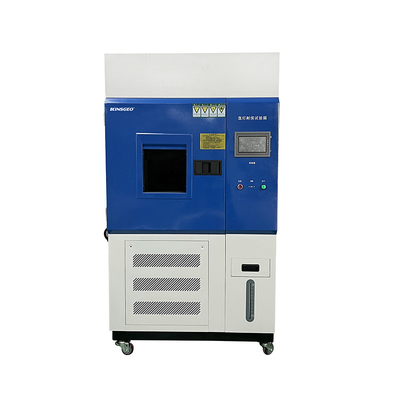

Laboratory Environment Climatic Aging Testing Machine Xenon Lamp Weather Resistance Test Chamber
Chamber Inner Size and Structure:
| Inner size(cm):D×W×H | 50×60×50 |
| Power | 6.5KW |
| Temperature range | Temperature range |
| Humidity range | 65～98％R.H(adjustable) |
| Rain falling time | 0～9999min (adjustable) |
| Rain falling period | 1～240minutes,interval(break),adjustable |
| Spectral wavelength | 290nm～800nm |
| Xenon lamp total power | 1.8KW(lifetime:1600hours) |
| Time Controller | Imported programmable time computer integrated controller |
| Accuracy range | temperature ±0.1℃,humidity±1％R.H,indicate accuracy:temperature,±0.1℃,humidity,±1％R.H |
| Temperature Humidity Sensor | PTR Platinum Resistance,PT100Ω/MV |
| Heating system | autonomous system,nichrome electric heating heater |
| Humidification System | isolated type,SUS steel surface evaporative humidifier. |
| Blackboard temperature | thermometal blackboard thermometal. |
| Temperature controller | Imported microcomputer temperature humidity integration controller |
| cyclic system | low noise,air-condition type motor, multiple-pin Centrifugal rotor. |
| Outside chamber material | SUS304 stainless steel. |
| Inner chamber material | SUS304 stainless steel plate |
| Sample shelf material | SUS304 stainless steel plate |
| Doorframe heat insulation | good heat and cold resistance,aging Silicone rubber door and sealing strips. |
| Standard configuration | non-browning glass observing window 1pcs,xenon lamp 1pcs |
| Safeguard protection | leakage,short circuit,over temperature,short of water,motor overheating,over-current protection,Backup data for power fail |
| Voltage power | AC380V±10％ 50±0.5Hz 3 phase 5 lines |
| Using temperature | 5℃～＋30℃≤85％R.H |
| Testing standards | GB/T2423.24-1995 GB/T16422.2 GB9344 GB/T1865-97 ASTM G 155-04a |
Chamber structure:
1.Outside bile uses high quality (t=1mm)SUS304 steel plate numerically-controlled machine tool to process,outside hull spray molding treatment,make chamber more bright and clean.
2.high density glass cellucotton,insulation thickness is 80mm.
3.Use long axis fan motor,heat and cold resistance,stainless steel siroco fan,to make sure strength convection and vertical diffusion cycle.
4.Between door and chamber,use double-deck thermostability sealing strips,to make sure testing area is airtight.
5.Use no-retroaction doorknob,easy operation.
6.In the bottom of chamber,use high quality stationary type PU running wheel.
7.Observing window uses multilayer hollow toughened glass.
Cooling system:
1.Compressor uses France TAIKANG whole sealing compressor.
2.Cooling system uses Unit or binary low temperature return circuit system.
3.US “AIGLE” drying and filtering device,Taiwan AIRMENDER oil separator,Italy Castel solenoid valve.
Product function:
Full spectrum xenon lamp
Various selective filtration system.
Water spray function.
Relative humidity controlling.
Testing chamber air temperature controlling system.
Irregular shape sample supporting structure.
Superior Xenon arc lamp.
Xenon lamp lifelong is decided by the illumination level of radiation intensity,the lifelong is about 1600 hours,it's easy to change the lamp.
