650mm Stroke Universal Testing Machine Kejian 1067 Constant And Humidity Chamber

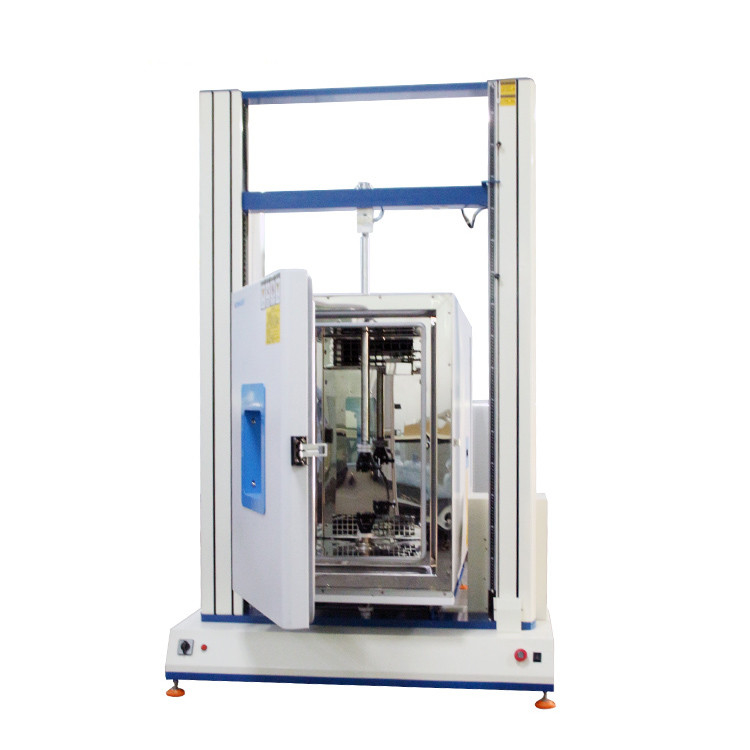

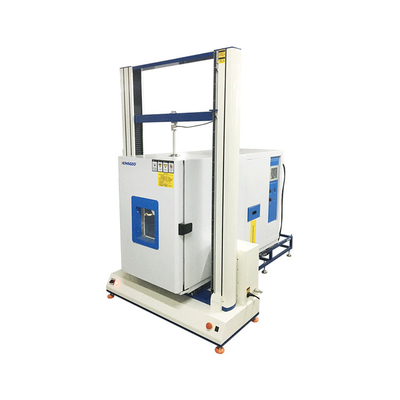

Large Image : 650mm Stroke Universal Testing Machine Kejian 1067 Constant And Humidity Chamber

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1067

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/9800/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	AC 220 V,AC220V 50Hz	Usage:	Universal Testing Machine
Weight:	1000 Kg	Product Name:	UTM
Power Supply:	Can Be Customized	Application:	Universal Tester
Standard:	BS.EN.ASTM	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Stroke:	650mm(excluding Clamp)	Measuring Accuracy:	The Value ±1%/ The Value±0.5%
Operation:	Computer Windows Operation
High Light:	650mm Stroke Universal Testing Machine , Constant And Humidity Universal Testing Machine

Kejian 1067 Constant And Humidity Chamber Universal Testing Machine

Uses

This machine combines high-low temperature tester with tensile peel strength tester

wonderfully. It can restrain the error brought by changing environment between testing

process.Setting up different fixtures can test 180&90 degree peeling strength, separating

force,etc. for the adhesive material in the high-low temperature environment. This machine

can be changed into programmable temperature&humidity tester according to your needs.

Character

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the

high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which

improve loading efficient and structure rigidity.

2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise.

The accuracy of speed can be controlled in 2%.

3. That Using the business computer as the main control machine plus the special testing

software of our company can conduct all of testing parameter, work state, collecting

data&analysis, result display and printing

output.

4.Have steady performance, high accuracy, powerful software function and easy operation.

5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and

bladder, not only beauty but corrosion resistance.

Accessories

1.Suitable Grips that meet customer sample need.

2.Special peeling tools for peel test in tape&film industry.

3.Software for test control,data acquisition and report.

4.English operation teach video.

Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3.Have simplified Chinese, traditional Chinese and English three languages,

switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of

graphics;

Technical parameter for Tensile Testing Machine
Capacity	5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg
Degree of load decomposition	1/25,000
Load accuracy	0.5%
Testing speed	0.5~500mm/min
Power system	AC servo motor and driver
Software feature	Unit selection: g, kg, N, KN, LB
Technical parameter for High-low Temperature Control System
Model	High-low temperature type
Range of temperature control	Customized
Range of humidity	20%RH~98%RH
Control stability	±2.5%RH, 1℃
Distribution uniformity	±3%RH, ±1℃
Control of temperature and humidity	Korean TIMI880 programmable touch screen controller
Size of inner box	40×40×70cm(customized)
Power	1φ, AC220V/50Hz
