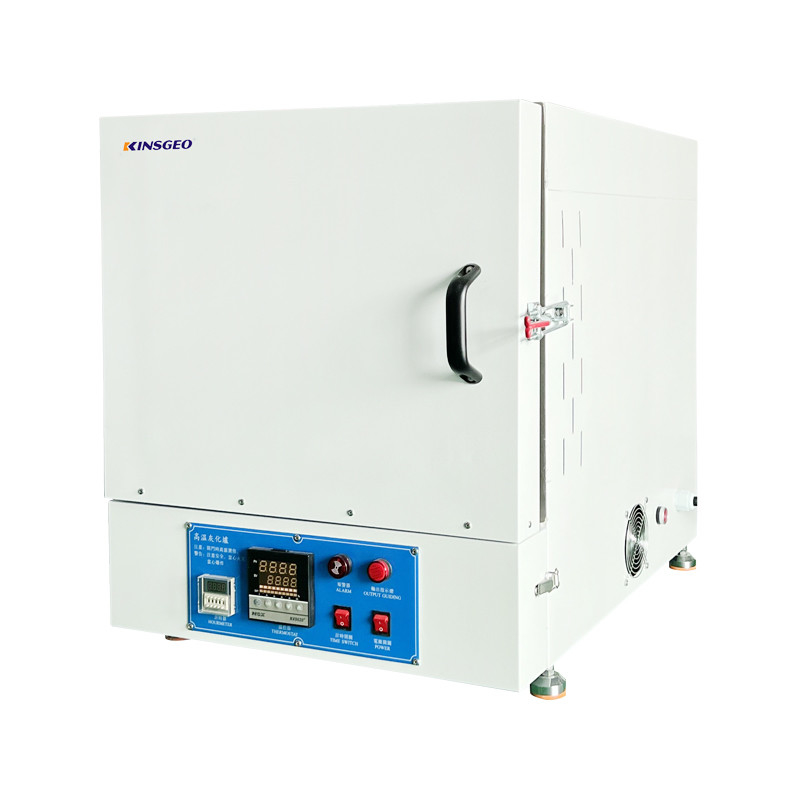

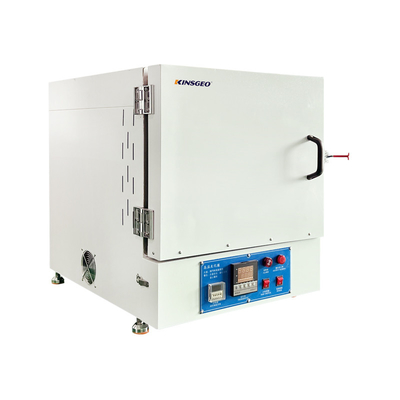

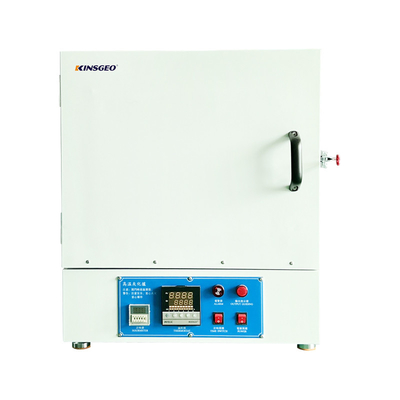

Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory

Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory
Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory

Large Image :  Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/3500/SET
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30Sets/month
Detailed Product Description
Brand Name: KeJian Product Name: Muffle Furnace
Warranty: 3 Years Usage: Higher Temperature Heating Treatment
Max Temperature:: 1200.C Place Of Origin: Guangdong, China
Classification: Laboratory Heating Equipments Packaging Details: In Export Plywood
Highlight:

1600 Degree Lab muffle furnace

,

heating resistance muffle furnace

,

Atmosphere Vacuum muffle furnace

Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Muffle Furnace laboratory heating resistance muffle furnace



Usage

High temperature ashing furnace is used for special baking process, it can be used for aging test of electronic components, plastic chemical products, preheating, quenching, burning, stew, annealing, ashing test, scouring and other high heat treatment test of cutting tools and iron, etc.

Temperature control system:

Temperature control for PID microcomputer automatic calculation PV/SV display at the same time, can be in the machine temperature within the allowable range according to personal willingness to set the required temperature, and through the table PID parameter setting to ensure the accuracy of its temperature control, but also by the table with its own system self-calculation of appropriate temperature control parameters. Temperature sensing input force CA(K) TYPE the output is 12V. The current controller is SSR without contact Relay to maintain the high stability of current. Heating material is imported nickel cadmium alloy heating wire, no pollution and long service life.
Model
KJ-6025A
Internal Warp Size (H*W*D) cm
12×8×20
Outer box size
48×65×56
Cubage(L)
1.9
Temperature range
RT+10℃~+1200℃ The commonly used temperature:600-1000℃
Heating up time
From room temperature (+10℃) to high temperature (+1000℃) for about 60 minutes (no load)
Temperature fluctuation
±2℃ (no load 500-1000℃)
Temperature distribution error
±1%℃(no load 500-1000℃)
Exterior wall material of chamber
A3 steel powder anti-static baking paint treatment
Furnace material
Imported high density silicon carbide
Heat preservation material
Imported high density aluminum silicate

Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory 0Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory 1Heating Resistance Muffle Furnace 1200/1600 Degree Lab Atmosphere Vacuum Laboratory 2
