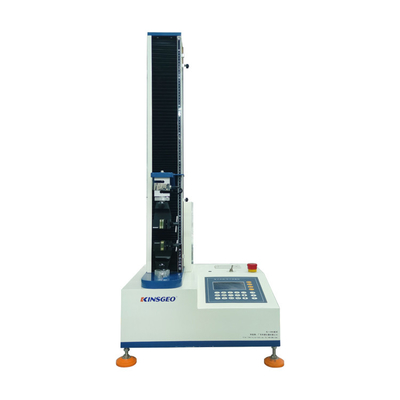

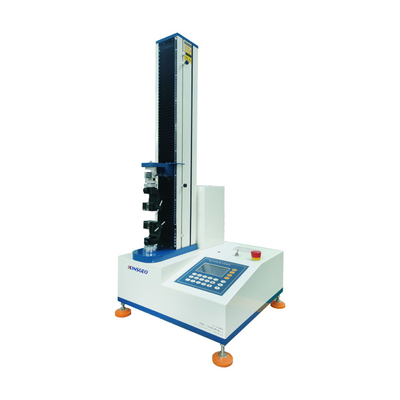

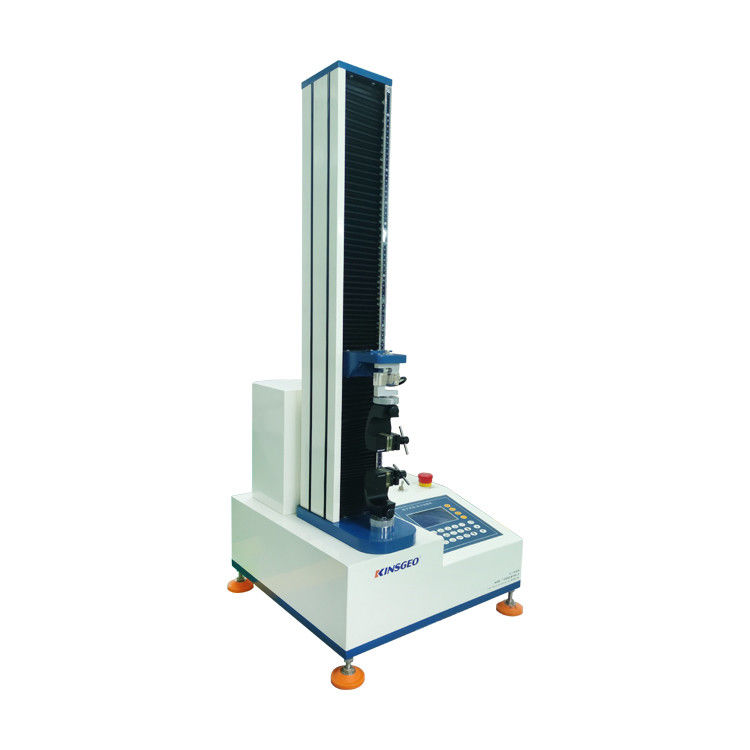

High Precise Adhesive Tape Desktop Tensile Tester , 50N Peel Testing Machine

High Precise Adhesive Tape Desktop Tensile Tester , 50N Peel Testing Machine
High Precise Adhesive Tape Desktop Tensile Tester , 50N Peel Testing Machine

Large Image :  High Precise Adhesive Tape Desktop Tensile Tester , 50N Peel Testing Machine

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE
Model Number: KJ-1065C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/2300/SET
Payment Terms: L/C
Supply Ability: 30Sets/month
Detailed Product Description
Power: Electronic,Hydraulic,AC 220 V, AC220V 50Hz Usage: Universal Testing Machine,Tensile Testing Machine
Weight: 90kg Product Name: Computer Control Single Column Universal Testing Machine,High Quality 50kn Electronic Universal Tensile Testing Machine,Computerized 100t Universal Material Testing Machine With ASTM Usage,10T Computer Servo Universal Tensile Testing Machine Price
Range Of Speed: 0.5-1000mm/min Motor: Japan Panasonic Servo Motor
High Light:

Adhesive Tape Desktop Tensile Tester

,

AC220V Peel Testing Machine

,

50N Peel Testing Machine

High Precise Desktop Adhesive Tape Peeling Strength Tensile Tester 50N Peel Testing Machine

Product Design Standard

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453,ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.





Product Description

A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

B. Having steady performance, high accuracy, powerful software function and easy operation.

C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.





Range of speed 0.5-1000mm/min
Motor Japan Panasonic Servo Motor
Capacity choice 1.2.5.10.20.50.100.200.500kg optional
Resolution 1/250,000
Effective testing space 120mm max
Accuracy ±0.5%
Operation method Windows operation
Accessories computer, printer, system operation manual
Optional accessories stretcher, air clamp
Weight 80KG
Dimension (W×D×H) 58×58×125cm
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device

Handling emergencies
