Product Details:
Payment & Shipping Terms:
|
Capacity: | 5, 10, 20KN | Accuracy Class: | 0.5 Class |
---|---|---|---|
Testing Speed: | 0.05~-500mm/min | Effective Testing Width: | 390mm |
Resolution Of Testing Force: | 1/300,000 | Accuracy Of Displacement Measurement: | 0.1% |
High Light: | 20KN Tensile Strength Tester,500mm/min Tensile Strength Tester,Universal Tension Testing Machine |
Standard
GB/T2792 Standard test for 180 degree peeling force of adhesive tape
ASTM D3330 Test method for adhesion of pressure sensitive tape stripping
GB/T15598-1995 Test method for plastic shear strength
HGT2-163 Test method for plastic low-temperature tensile strength
GT/T 7753-1987 Test method for tensile performance of pressure sensitive tape
GT/T 7754-1987 Test method for shear strength of pressure sensitive tape
GB/T 7124-86 Test method for tensile strength of adhesive tape
GB/T 7124-2008 Measurement for tensile and shear strength of adhesive(rigid material to rigid material)

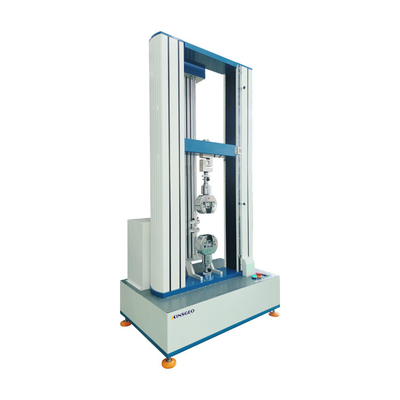

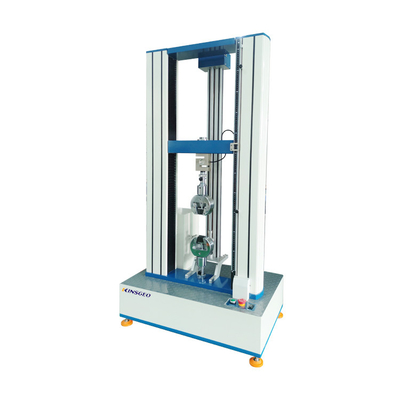

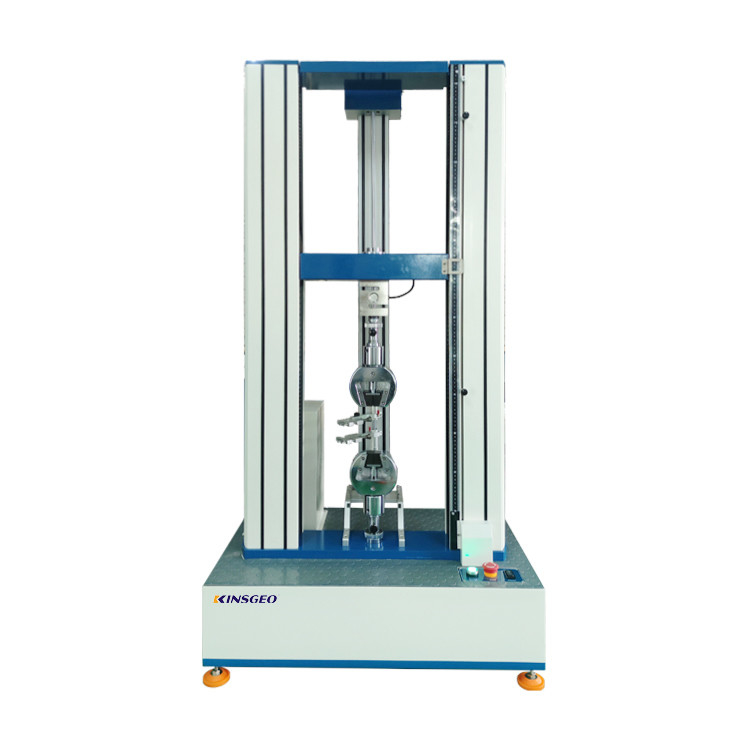

Feature
1. The machine body is made of high strength steel die, and the force column is made of high strength aluminum.
2. The appearance adopts high-grade imitation car shell paint treatment technology and specular paint, so that it is beautiful and bright.
3. The surface of paint film is tested qualified in all kinds of performance. It is nontoxic, non-polluting, non-combustible and non-explosive and ageing-resistant.
4. The precise servo motor makes the equipment operate more accurate.
5. It adopts high-precision sensor to make the force testing more accurate.
6. It can change different clamps to do different tests.
Capacity | 5, 10, 20KN |
Accuracy class | 0.5 class |
Testing speed | 0.05~-500mm/min |
Effective testing width | 390mm |
Resolution of testing force | 1/300,000 |
Accuracy of displacement measurement | 0.1% |
Speed accuracy | 0.1% |
Accuracy of deformation measurement | 0.1% |
Effective range of force measurement | 0.02/100~100% |
Stroke | 1000mm(It depends on the fixture.) |
Control system |
Full digital AC servo controller |
