Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V 50HZ | Usage: | Plastic Lab Testing Machine |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Plastic Lab Testing Machine Melt Flow Index Tester |
| Weight: | 60kg | Certification: | CE/ISO/ASTM |
| Key Wards: | Melt Flow Index Tester | Display: | LCD Display |
| High Light: | MFR Plastic Melt Flow Index Tester,MFI Plastic Melt Flow Index Tester,MVR Plastic Testing Machine |
||

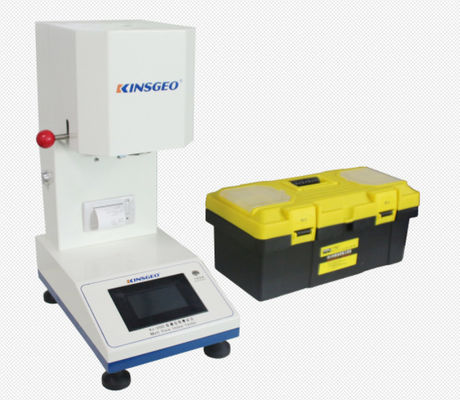

MVR MFR MFI Tester/ Plastic Melt Flow Index Tester Plastic Testing Machine
Uses:
KJ-3092 melt flow rate testing instrument can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.
Product Description:
| Model | KJ-3092 | ||
| Barrel parameters | Inner hole 9.55±0.025mm | ||
| Pistons parameters | Piston head: 9.475±0.015mm | ||
| Piston length | H=6.35±0.1mm | ||
| Parameters | Extrusion hole 1=2.095±0.005mm | ||
| Temperature parameter | With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade | ||
| Temperature range | 80degree centigrade~450degree centigrade | ||
| Temperature accuracy | ±0.2 degree centigrade | ||
| Display resolution | 0.1degree centigrade | ||
| Maximum comsuption | < 600W | ||
| Temperature accuracy | 4 min. | ||
| Weight parameters are as follows: | |||
| Weight accuracy | ±0.5% | ||
|
Basic configuration
|
A 0.325kg | ||
| B 1.2kg | |||
| C 2.16kg | |||
| D 3.8kg | |||
| E 5kg | |||
| F 10kg | |||
| G 12.5kg | |||
| H 21.6kg | |||
| Position detection | |||
| Loop distance from up and down | 30mm | ||
| Control precision | ± 0.1mm | ||
| Test flow control | |||
| Times of cutting the material | 0~10 times | ||
| Material cutting interval | 0~999s(set reference Table 2) | ||
| Control flow reaches the set temperature without volatility | |||
| Barrel temperature time | 15 min. | ||
| Material be installed | 1 min. | ||
| Material sample temperature recovery time | 4 min. | ||
| When binder set | 1min | ||
Standard:GB/T3682-2000,ISO1133-97, ASTM1238
About US
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3) Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
Contact Person: Miss. Silivia Zhang
Tel: 86-13925519875
Fax: 86-0769-28638013
