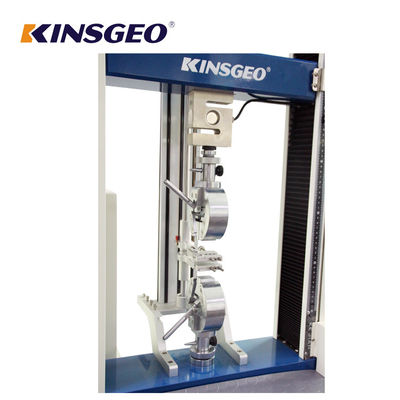

Geotextile Tensile Testing Equipment , Double Columns Tensile Strength Tester

Geotextile Tensile Testing Equipment , Double Columns Tensile Strength Tester
Geotextile Tensile Testing Equipment , Double Columns Tensile Strength Tester Geotextile Tensile Testing Equipment , Double Columns Tensile Strength Tester Geotextile Tensile Testing Equipment , Double Columns Tensile Strength Tester

Large Image :  Geotextile Tensile Testing Equipment , Double Columns Tensile Strength Tester

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-1066A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after we confirmed order
Payment Terms: T/T, Western Union, MoneyGram, L/C, T/T
Supply Ability: 5000 Sets/Year
Detailed Product Description
MOTOR: Panasonic Servo Motor TEST SPEED: 0.1-500mm/min Selectable
ACCURACY: ±0.5% CAPACITY: 5, 10, 20KN Optional
Effective Testing Width: 390mm APLICATION: Rubber ,plastic ,nylon ,leather And Etc
High Light:

Geotextile Tensile Testing Equipment

,

20KN Tensile Testing Equipment

,

Geotextile Tensile Strength Tester

Double Columns Geotextile Tensile Testing Equipment Strength Tester


Introduction:
Double Columns Geotextile Tensile Testing Equipment is the double columns pulling and pressure testing machine,which is suitable for testing strength of plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and relevant physical parameters.
This machine is Widely used in textile manufacturing, furniture manufacturing industry related materials, all kinds of wire mesh, adhesive sticker pressure sensitive adhesive tape, film materials, medical electronic equipment protective film related industries.


KJ-1066A Computer Universal Testing Machine(1).pdf...

Double Columns Geotextile Tensile Testing Equipment  Main feature:
1. The machine body is made of high strength steel die, and the force column is made of high strength aluminum.
2. The appearance adopts high-grade imitation car shell paint treatment technology and specular paint, so that it is beautiful and bright.
3. The surface of paint film is tested qualifiedly in all kinds of performance. It is nontoxic, non-polluting, non-combustible and non-explosive and ageing-resistant.
4. The precise servo motor makes the equipment operate more accurate.
5. It adopts high-precision sensor to make the force testing more accurate.
It can change different clamps to do different tests.

Universal testing machines are used to determine the physical and mechanical properties of raw materials and components by measuring and analyzing their performance under varying tensile or compressive forces, in numerous test methods

Double Columns Geotextile Tensile Testing Equipment  Specifications of Universal testing machine


ItemsTensile Testing Machine
Capacity100. 200. 500. 1000. 2000. 3000. 5000. 10000kg
Unit SwitchoverG, KG, N, LB
Display DeviceLCD or PC / Tensile Testing Machine
Resolution1/250,000
Accuracy±0.5%
Max. Stroke1000mm (including fixture)
Test Speed0.1-500mm/min (adjustable )
MotorPanasonic Servo Motor
ScrewHigh Precise Ball Screw
Elongation Accuracy0.001mm
PowerAC220V, 50HZ or customized
WeightApprox.500kg / Tensile Testing Machine
Accessories parts

tensile clamp, computer system, English software CD, operation CD,
user manual


Application Industries
Universal Tensile Strength Testing Machine is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.

KeJian Instrument Service:

Onsite Service:
1. Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment


Contact Us:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
Universal Tensile Strength Testing Machine, Tensile Tester
