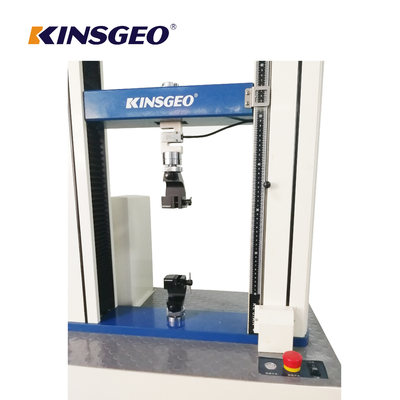

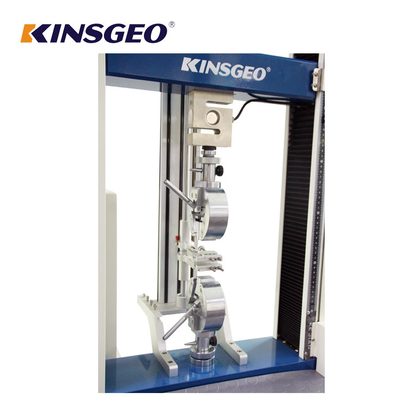

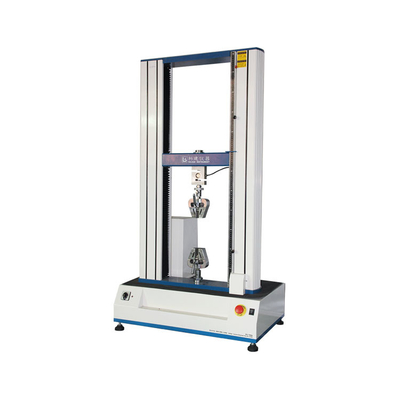

20Kn Universal Tensile Testing Machine with 0.1-500mm/min Test Speed ±0.5% Accuracy and 390mm Effective Testing Width

20Kn Universal Tensile Testing Machine with 0.1-500mm/min Test Speed ±0.5% Accuracy and 390mm Effective Testing Width
20Kn Universal Tensile Testing Machine with 0.1-500mm/min Test Speed ±0.5% Accuracy and 390mm Effective Testing Width 20Kn Universal Tensile Testing Machine with 0.1-500mm/min Test Speed ±0.5% Accuracy and 390mm Effective Testing Width 20Kn Universal Tensile Testing Machine with 0.1-500mm/min Test Speed ±0.5% Accuracy and 390mm Effective Testing Width

Large Image :  20Kn Universal Tensile Testing Machine with 0.1-500mm/min Test Speed ±0.5% Accuracy and 390mm Effective Testing Width

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-1066A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after we confirmed order
Payment Terms: T/T,Western Union,MoneyGram,L/C,T/T
Supply Ability: 5000 Sets/Year
Contact Now
Detailed Product Description
MOTOR: Panasonic Servo Motor TEST SPEED: 0.1-500mm/min Selectable
ACCURACY: ±0.5% CAPACITY: 5, 10,1000N，20KN Optional
Effective Testing Width: 390mm APLICATION: Rubber ,plastic ,nylon ,leather And Etc
DESIGN STANDARD: ASTM D903,GB/T16491 And Etc
Highlight:

0.1-500mm/min Test Speed Universal Tensile Testing Machine

,

±0.5% Accuracy Tensile Tester

,

390mm Effective Testing Width Electronic Tensile Tester

New Design 20Kn Tabletop Digital Display Universal Tensile Testing Machine
Double Columns 10Kn Electronic Tensile Tester
Universal Tensile Testing Machine and Equipment is the double columns pulling and pressure testing machine, suitable for testing strength of various materials including plastic film, composite materials, soft packaging materials, plastic hose, adhesive materials, medical patches, non-woven fabric, rubber, paper fiber and more.
Key Features
  • Machine body made of high strength steel die with force column of high strength aluminum
  • High-grade imitation car shell paint treatment with specular finish
  • Non-toxic, non-polluting, non-combustible paint film that's ageing-resistant
  • Precise servo motor for accurate operation
  • High-precision sensor for accurate force testing
  • Interchangeable clamps for different test requirements
Download Product Specifications PDF
Technical Specifications
Items Tensile Testing Machine
Capacity 100. 200. 500. 1000. 2000. 3000. 5000. 10000kg
Unit Switchover G, KG, N, LB
Display Device LCD or PC / Tensile Testing Machine
Resolution 1/250,000
Accuracy ±0.5%
Max. Stroke 1000mm (including fixture)
Test Speed 0.1-500mm/min (adjustable)
Motor Panasonic Servo Motor
Screw High Precise Ball Screw
Elongation Accuracy 0.001mm
Power AC220V, 50HZ or customized
Weight Approx.500kg / Tensile Testing Machine
Accessories parts Tensile clamp, computer system, English software CD, operation CD, user manual
Application Industries
This Universal Tensile Strength Testing Machine is widely used in rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, wire and cables, packaging materials, medical equipment, research laboratories, technical supervision departments, and building materials industries.
Customer Support Services
  • Onsite Service: Device installation, equipment operation test, technology training, calibration, and maintenance
  • Technical Support: 24-hour online contact, free software upgrades
  • Free Resources: Product instructions, operation videos, test applications and reports
  • Problem Resolution: Social media support, email communication, video conferencing, and door-to-door service
Commitment to Quality
We guarantee a response within 48 hours and solution within 3 working days for any testing process issues. We provide operation videos and English manuals, along with video conference support when needed.
Specialized clamps available to exactly fit your test requirements!
