|Product Name:||Coefficient Of Friction Tester||Sample Thickness:||≤0.2mm|
|Size Of Slider:||63*63mm||Weight Of Slider:||200±2g|
|Size Of Test Platform:||170×225mm||Testing Accuracy:||±2%|
ASTM D1894 coefficient of friction testing equipment,
COF coefficient of friction testing equipment,
5N coefficient of friction testing machine

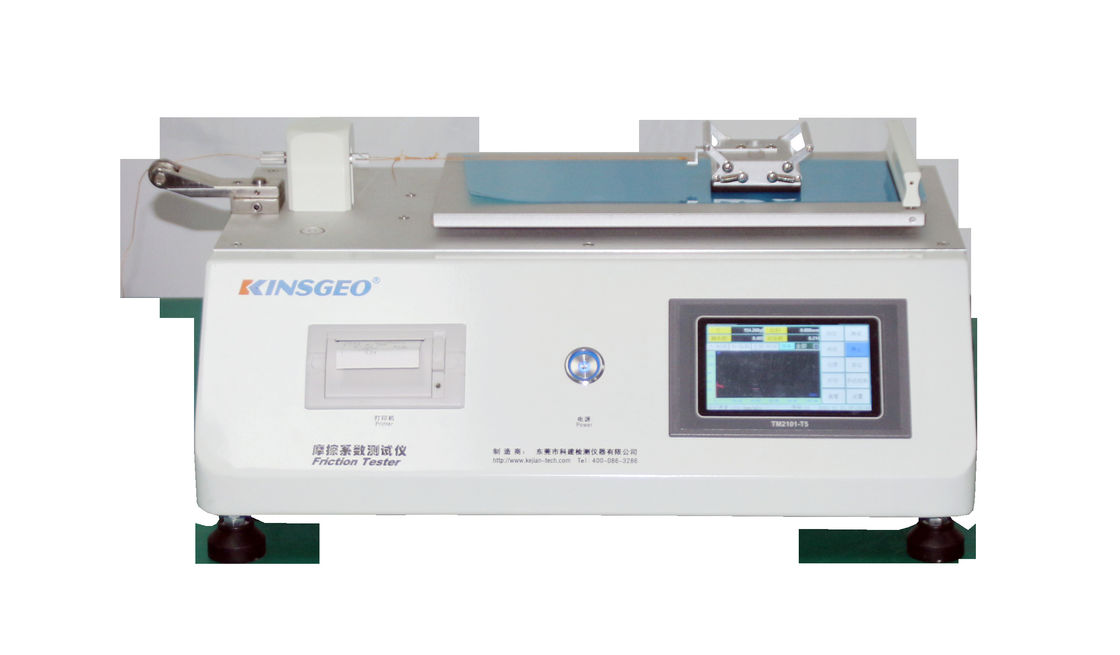

ASTM D1894 COF Coefficient Of Friction Testing Equipment Coefficient Of Friction Tester
GB10006, ASTM D1894, ISO8295 and etc.
It is mainly used to measure the static friction coefficient and dynamic friction coefficient of plastic film and thin film(or other similar materials). The supporting control software can intuitively understand the film's smoothness and openness, and show the distribution of the smoothness agent through the curve.By measuring the smoothness of the material, it can control and adjust the opening of the packaging bag, packaging speed and other production quality process indicators to meet the requirements of usage.
1. It has ull digital automatic system and liquid crystal display.In the testing process, it can follow and reveal the friction. The testing result shows the static friction coefficient and dynamic friction coefficient.
2. When it connect to computer, it can not only automatic memory and store results but also display and store the change of friction curve.
3. It adopts high-precision sensor with 1 class measurement accuracy.
4. The specially designed driver is more stable and more accurate.
|Size of slider||63×63mm|
|Weight of slider||200±2g|
|Size of test platform||170×225mm|
|Movement speed of slide block||100±10mm/min|
|Stroke of slide block||100mm maximum(It can be adjusted.)|
|Range of force measurement||0～5N|
|Size of the machine||About 500×335×220mm|
|Standard equipment||Main machine, micro printer, specialized measurement&control software, 200g slider, communication data cable|
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
