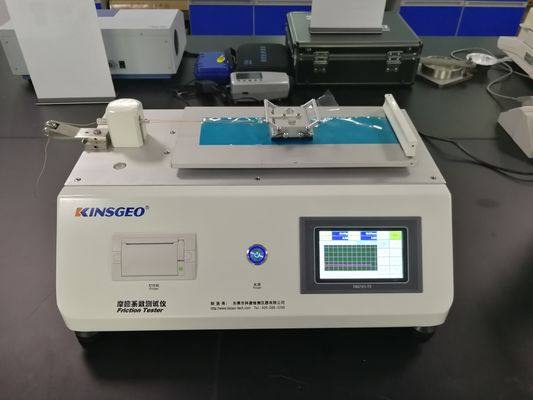

100mm PP PVC Plastic Bag Friction Tester For Film And Sheet

100mm PP PVC Plastic Bag Friction Tester For Film And Sheet
100mm PP PVC Plastic Bag Friction Tester For Film And Sheet 100mm PP PVC Plastic Bag Friction Tester For Film And Sheet

Large Image :  100mm PP PVC Plastic Bag Friction Tester For Film And Sheet

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: ISO,CE etc.
Model Number: KJ-6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 set /month
Detailed Product Description
Sample Thickness:: No More Than 0.2mm Slider Size:: 63 X 63mm
Mass Of Slider:: 200 + Or 2g Test Table Size:: 170 X 225mm
Measurement Accuracy:: + / - 2% Speed Of Sliding Block Movement: : 100 + + 10mm/min (150mm/min Can Be Ordered)
Slide Stroke:: Maximum Size 100mm (adjustable) Force Range:: 0-5n
Dimensions:: About 500 X 335 X 220 Mm
Highlight:

PP Plastic Bag Friction Tester

,

100mm Plastic Bag Friction Tester

,

GB10006 friction Tester

Hot sale COF PP/PVC Plastic Bag Friction Tester Use for film and plastic sheet



The KJ-6040 friction Tester is mainly used to measure the static friction coefficient and dynamic friction coefficient of plastic film and thin film (or other similar materials). The supporting control software can intuitively understand the smoothness and opening of the film, and show the distribution of the smooth agent by curve.By measuring the smoothness of materials, we can control and adjust the opening of packaging bags, packaging machine speed and other production quality indicators to meet the requirements of product use.



Executive standard:

GB10006 ,ASTM D1894, ISO8295



Technical parameters:

Sample thickness: no more than 0.2mm

Slider size: 63 x 63mm

Mass of slider: 200 + or 2g

Test table size: 170 x 225mm

Measurement accuracy: + / - 2%

Speed of sliding block movement: 100 + + 10mm/min (150mm/min can be ordered)

Slide stroke: maximum size 100mm (adjustable)

Force range: 0-5n

Dimensions: about 500 x 335 x 220 mm

Power supply: AC220V plus or minus 22V, 50Hz

Standard configuration: main machine, micro printer, special measurement and control software, 200g slider, communication data cable



Product features:

Digital automatic system, LCD display.The test process shows the friction, and the test results show the dynamic and static friction coefficients.

I can connect to a computer.When connected to the computer, in addition to the automatic memory storage results, can also show the friction curve changes and preserve.

Precision force sensor is adopted, measuring precision is 1 grade.

Special designed drive system, smooth movement, more accurate test results.



Details:

100mm PP PVC Plastic Bag Friction Tester For Film And Sheet 0



100mm PP PVC Plastic Bag Friction Tester For Film And Sheet 1
