Industrial 200-500C SSR Environmental Test Chambers For Lab

Industrial 200-500C SSR Environmental Test Chambers For Lab
Industrial 200-500C SSR Environmental Test Chambers For Lab Industrial 200-500C SSR Environmental Test Chambers For Lab Industrial 200-500C SSR Environmental Test Chambers For Lab Industrial 200-500C SSR Environmental Test Chambers For Lab

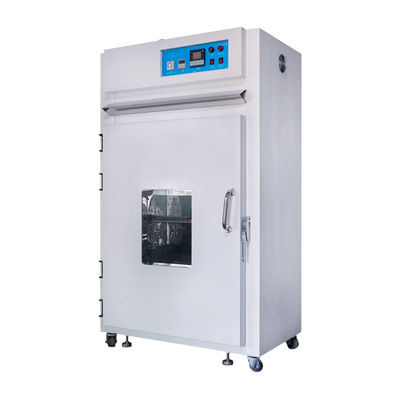

Large Image :  Industrial 200-500C SSR Environmental Test Chambers For Lab

Product Details:
Place of Origin: Dongguan China
Brand Name: KINSGEO
Certification: CE,ISO
Model Number: KJ-2010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: in stock,5-10 working days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets per Month
Detailed Product Description
Product Name: Industrial Oven Temperature Range: 200℃,300℃,400℃,500℃
Heating Time: Heating Time Power: 220V Or 380V
Partition (net Bar Shape): 2 Warranty: 1 Year
High Light:

Industrial 500C Environmental Test Chambers

,

SSR Environmental Test Chambers

,

SSR Industrial Test Oven

Customized Size Environmental Aging Industrial Oven Test Chamber



Product Introduction:


Inner size: 90×60×120cm(W×D×H)(Customized),
Outside size: 110*75*186cm (W×D×H)
Power:220/380V heating power:about KW

1. The right side of the machine is controller,opened in the centre with two doors, luxury handle is stainless steel,more important,the machine has the anti-explosion door holder.
2.
Inner's material is 304 mirror surface stainless steel. Lumen of the machine is clean and smooth,it’s easy to clean and do not keep residue, corrosion resistance function is very good.All the inner material is low- infectant material.Inner machine all has the non-trace argon arc welding
3.
Outside's material is SECC armor plate,thickness of plating is 1.2mm baking finish with Fine powder.
Heat preservation is imported high density glass rock wool, thermal insulation is very good,can resist the 150℃.

Temperature control system

1. Temperature controller is PID microcomputer auto-calculation,showing by PV/SV,Set the temperature you need,control the accuracy by PID parameter.
2. Current controller is SSR,contactless Relay,keep the voltaic high stability.
3 .Heating material is honeycomb stainless steel heating tube,and pollution-free with long using life.
4. Temperature range:RT~400℃(Customise),normal temperature RT~350℃(Customise),.
5.  Accuracy:contral accuracy±0.5℃,distribution temperature ±2.0℃(no-load)
Air supply system

Moter long axis thermostability is imported from Taiwan,rate of work is 1/2HP50Hz
The fan is leafiness turbine type,strong strength,has adjustable river diversion wind-plate Make the wind path smoothly.
Heating speed:RT~100℃ about 10minutes.

Accessories

superhigh temperature protection, non fuse-switch, porcelain fuse,motor overcurrent protection
Timer: 9999s~9999hour(can set by H.M.S)
Timer when the temperature is ok,outage when the time is ok,stop heating and alarm.

Specification:

Interior size
(W×H×D)
Exterior size
(W×H×D)
Temperature
range
Heating time Accuracy

Uniformity

Power

Partition

(net bar shape)

35×35×35cm 53×65×55cm 200℃ RT-100℃
About 10min
±1℃ ±5

220V

or

380V

1.5kW 2
45×40×40cm 66×98×53cm A:200℃
B:300℃
C:400℃
D:500℃
±0.5℃ ±1 3.5kW 2
50×60×50cm 75×121×68cm ±0.5℃ ±1 4.5kW 2
60×90×50cm 85×160×68cm ±0.5℃ ±1 5.5kW 2
80×100×60cm 110×168×78cm ±0.5℃ ±1 6.5kW Customized
90×120×60cm 120×180*78cm ±0.5℃ ±2 7kW
140×120×60cm 175×192×78cm ±1℃ ±2 11kW
160×140×80cm 200×215×98cm ±1℃ ±2 13kW
180×140×100cm 220×215×118cm ±1℃ ±2 19kW

KeJian Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
