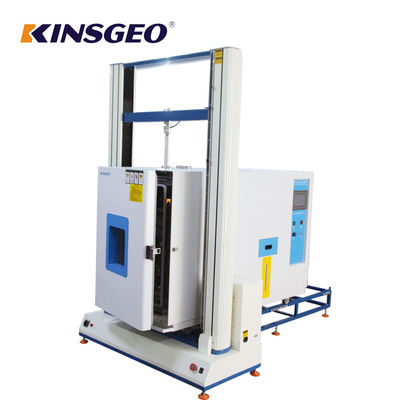

10kn Electronic Universal Tensile Strength Test Machine / universal testing machine compression test
Payment & Shipping Terms:
|Product Name:||Constant Temp.&Humidity Peel Strength Tester||Load Accuracy:||0.5%|
|Testing Speed:||0.5～500mm/min||Power System:||Panasonic AC Servo Motor|
|Range Of Humidity:||20%RH～98%RH||Range Of Temperature:||-40 Degree~150 Degree|
|Capacity:||5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg||Warranty:||12 Months|
Humidity Temperature Universal Testing Machines,
GB10586-89 Universal Testing Machines,
GB10586-89 tensile testing machine
Rubber Plastic Tensile Strength Tearing Strength Tester with Humidity and Temperature Chamber
GB10586-89 Technical conditions of low-temperature test chamber
GB/T7750-1987 Test method for tensile shear creep properties of adhesives
GB2423.1-89 Basic environmental test procedures for electrical and electronic products Test A: low-temperature test method
GB2423.2-89 Basic environmental test procedures for electrical and electronic products Test B: high-temperature test method
GJB150.3-86 Environmental test methods for military equipment High-temperature test
1. The machine structure adopts advanced baking paint treatment and is equipped with high precision, low resistance, no clearance double ball screw and guide column, so that the loading efficiency and structural hardness are increased.
2. The control system adopts Panasonic AC servo motor, which ensures the rotational system has characteristics of high efficiency, stable transmission, low noise and precise speed control.
3. The microcomputer system uses the commercial computer as the main control machine. It can complete all the test parameters setting, working state control, data acquisition, processing analysis, result display and print output with our specialized test software.
4. The high-low temperature test chamber adopts bistratal adiabatic glass door for the convenience of observe testing condition. It adopts whole stainless steel frame and liner. It is not only beautiful, but also has strong resistance to corrosion.
5. The structure of instrument is reasonable. It can be used to test separately or combinedly. It can be separated into Constant Humidity&Temp. Tester and Peel Strength Tester.
|Technical parameter for Tensile Testing Machine|
|Capacity||5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg|
|Degree of load decomposition||1/25,000|
|Power system||Panasonic AC servo motor and driver|
|Software feature||Unit selection: g, kg, N, KN, LB|
|Technical parameter for High-low Temperature Control System|
|Model||High-low temperature type|
|Range of temperature control||Customized|
|Range of humidity||20%RH～98%RH|
|Distribution uniformity||±3%RH, ±1℃|
|Control of temperature and humidity||Korean TIMI880 programmable touch screen controller|
|Size of inner box||40×40×70cm(customized)|
KEJIAN Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
2.Equipment Operation Test Technology training
3. Equipment Calibration
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service.
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
