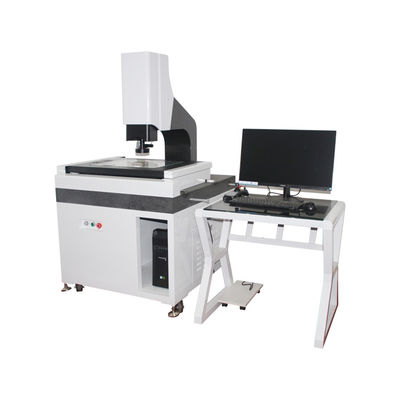

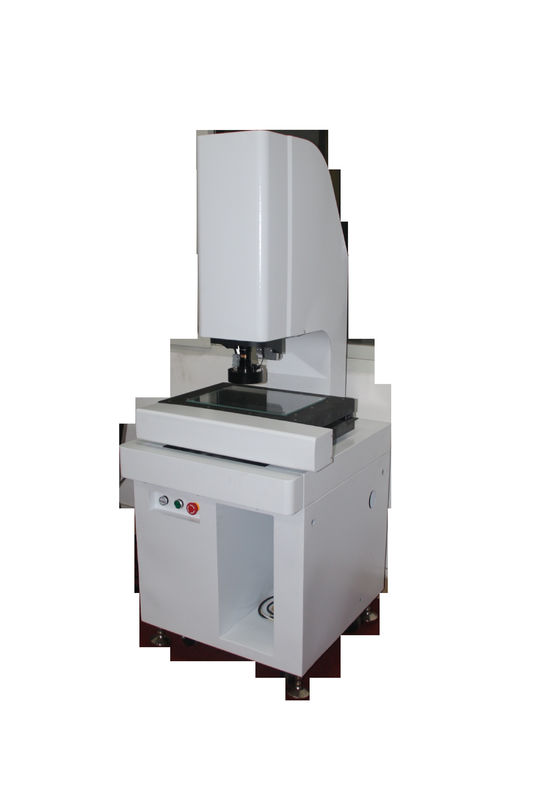

220V LED Light Optical Coordinate Measuring Equipment For Back Cover

220V LED Light Optical Coordinate Measuring Equipment For Back Cover
220V LED Light Optical Coordinate Measuring Equipment For Back Cover 220V LED Light Optical Coordinate Measuring Equipment For Back Cover 220V LED Light Optical Coordinate Measuring Equipment For Back Cover

Large Image :  220V LED Light Optical Coordinate Measuring Equipment For Back Cover

Product Details:
Place of Origin: China
Brand Name: Kejian
Model Number: KJ-VMC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 5000/Set
Packaging Details: wooden
Delivery Time: 5 work days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Set/Week
Detailed Product Description
Product Name: Automatic Image Measuring Instrument Function: Widely
Weight: 300KG Load Capacity: 15KG
Dimension: 900*800*1700 Working Distance: 92mm
High Light:

220V Optical Coordinate Measuring Equipment

,

Back Cover Optical Coordinate Measuring Equipment

,

Back Cover Coordinate Measuring Equipment

220V LED Light Optical Coordinate Measuring Equipment Machines For Back Cover Of Mobile

Instructions

VMC is a fully automatic image measuring instrument developed for product measurement applications. It adopts flexible manual
variable times, optimized hardware and software configuration, and perfectly realizes the full automatic measurement requirements
of various 2D sizes in batches, widely used in mold, precision hardware, mobile phone panels, glass, touch screen and other
industries.





Parameters
  VMC3020D VMC4030D VMC5040D
Test distance(mm)
X Y Z
300x200x200 400x300x200 500x400x200
Weight (kg) 250 350 500
Load capacity 15kg

X Y axis accuracy(μm)
≤3+L/200(L is the unit of measure mm)
Z-axis accuracy (μm) ≤3+L/100(L is the unit of measure mm)
Working Distance
82mm
Resolution 0.1μm
Objective magnification 0.7X-4.5X
Composite Multiple 20~128X
Control System CNC CLOSED-LOOP CONTROL system
Lighting System Surface light source and transmission light source are LED, brightness adjustable
Computer Windows 7



Company Profile:

Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.

Why Choose Us

1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or
damaged by people on purpose.

2).Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and
commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.

3).Certificate services: Complying with our clients' request, we can provide related certificates to clients freely

4).Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .
