Product Details:
Payment & Shipping Terms:
|
Power: | Electronic | Usage: | Video Measuring Instrument |
---|---|---|---|
Product Name: | Coordinate Measuring Machine | Resolution: | 0.1 μm |
Weight: | 860kg | Raster Resolution: | 0.001mm |
Glass Table Size: | 350 X 280mm | Application: | Plastics,Metal,textile,etc |
Warranty: | 12 Months | ||
High Light: | 0.1um Coordinate Measuring Machines,CMM 3D Coordinate Measuring Machines,0.1um cmm measuring machine |

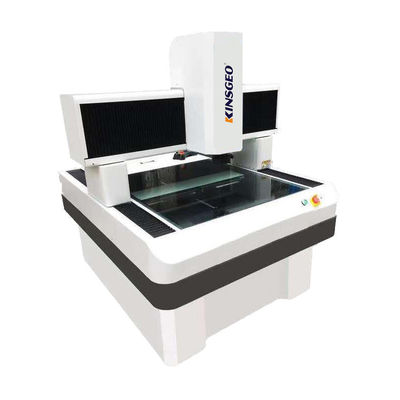

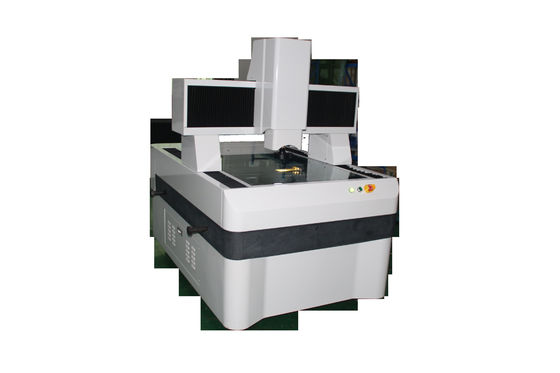

It adopts original imported from Japan screw drive and servo control technology, combined with our self-developed automated measurement software, it has been widely used in LCD display parts, PCB, communication device parts, sheet metal, space industry and other industries for precision auto measurement.
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting and universal 3D Model file for professional design software like Solidwork, UG & Pro-E.
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness,
flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1) Machinery: sheet, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Grade 00 JINANQING granite base, gantry structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
3. Programmable control of integrated 40 groups, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
001 | 002 | 003 | 004 | 005 | 006 | 007 | |
Model | VMG0203 | VMG0405 | VMG0608 | VMG0810 | VMG1012 | VMG1215 | VMG1518 |
Glass Size (mm) | 300*400 | 500*600 | 700*900 | 900*1000 | 1100*1300 | 1300*1600 | 1600*1900 |
X,Y Stroke (mm) | 200*300 | 400*500 | 600*800 | 800*1000 | 1000*1200 | 1200*1500 | 1500*1800 |
Z Stroke(mm) | 200 | ||||||
Load Capacity | approx. 35 kg | ||||||
Dimension (mm) | 820*1020*1600 | 1020*1220*1600 | 1220*1520*1600 | 1420*1720*1600 | 1620*1920*1600 | 1820*2220*1600 | 2120*2520*1600 |
Weight(kg) | 1000 | 1250 | 1380 | 2000 | 2500 | 3000 | 4000 |
Resolution | 0.5μm | ||||||
Camera | TEO™ 1 / 2" CCD Camera | ||||||
Zoom Lens | professional auto zoom lens Zoom lens magnification: 0.7-4.5X | ||||||
Video Magnification | 20-128X | ||||||
FOV | 12.7 mm | ||||||
Accuracy E1* | Ex,y ≤ (2.8+L/200)μm | Ex,y ≤ (3.5+L/200)μm | Ex,y ≤ (4.5+L/200)μm | ||||
Accuracy E2* | Exy ≤ (3.3+L/200)μm | Exy ≤ (4.5+L/200)μm | Exy ≤ (5.8+L/200)μm | ||||
Accuracy E3* | Ez ≤ (2.5+L/100) μm | ||||||
Illumination | Surface and transmitted light source adopt LED, brightness adjustable |
* All data is tested according to Standard JJF1318-2011
L is measured length (units: mm)
Specifications subject to change without notice
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1. Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1. Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
