Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Vertical Horizontal Burning Behavior Flammability Test Equipment | Volume Of Inner Box: | ≥0.5 Cubic Meters, With Glass Door |
|---|---|---|---|
| Residual Flame Time: | 0～99 Minutes Or 99 Seconds Can Be Set | Burning Angle: | 20 °, 45 °, 90 °(0 °) Is Adjustable |
| Sample Method: | Motor Driven Calibration | Warranty: | 12 Monthes |
| High Light: | AC220V Environmental Test Chambers,Hydrostatic Environmental Test Chambers,AC220V flammability test chamber |
||
AC 220V Vertical Horizontal Flammability Hydrostatic Pressure Environmental Test Chambers
Standard
UL94, GBT2408 and etc.
Usage
This tester is suitable for the detection and evaluation of the burning characteristics of plastics materials is according to the American UL94 standard and GBT2408 a parts for <Equipment and instruments in plastic material flammability test of relative clauses specified >in the design and manufacturing, plastic parts of equipment and utensils horizontal, vertical flammability test, and equipped with gas flow meter, adjust the flame size, simple and safe operation.
Technical Parameter
| Volume of inner box | ≥0.5 cubic meters, with glass door |
| Residual flame time | 0～99 minutes or 99 seconds can be set |
| Residual burning time | 0～99 minutes or 99 seconds can be set |
| Burning time | 0～99 minutes or 99 seconds can be set |
| Burning angle | 20 °, 45 °, 90 °(0 °) is adjustable |
| Size parameters of the burner | Nozzle diameter 9.5 mm, nozzle effective length is 100 mm, with air conditioning holes |
| Flame height | According to the standard requirement from 20 mm to 175 mm |
| Sample method | Motor driven calibration |
| Power | AC 220V/50 Hz |

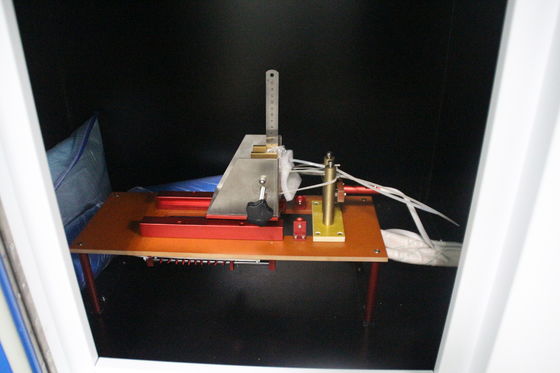

Pictures
About US
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3) Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
