Product Details:
Payment & Shipping Terms:
|
Power: | AC 220V Or Custom | Usage: | Video Measuring Instrument |
---|---|---|---|
Product Name: | Coordinate Measuring Machine | Resolution: | 0.1 μm |
Weight: | 250kg | Warranty: | 12 Months |
High Light: | 0.1um coordinate measuring equipment,CE 250kg coordinate measuring equipment,0.1um automatic dimension measuring machine |

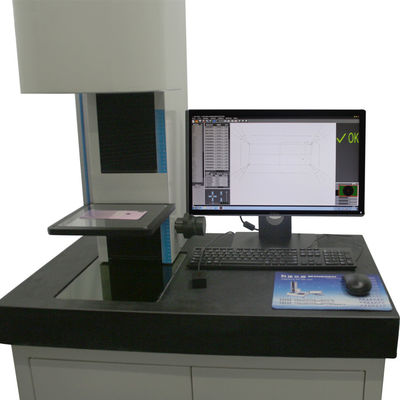

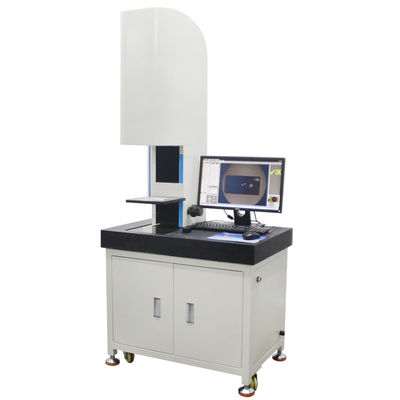

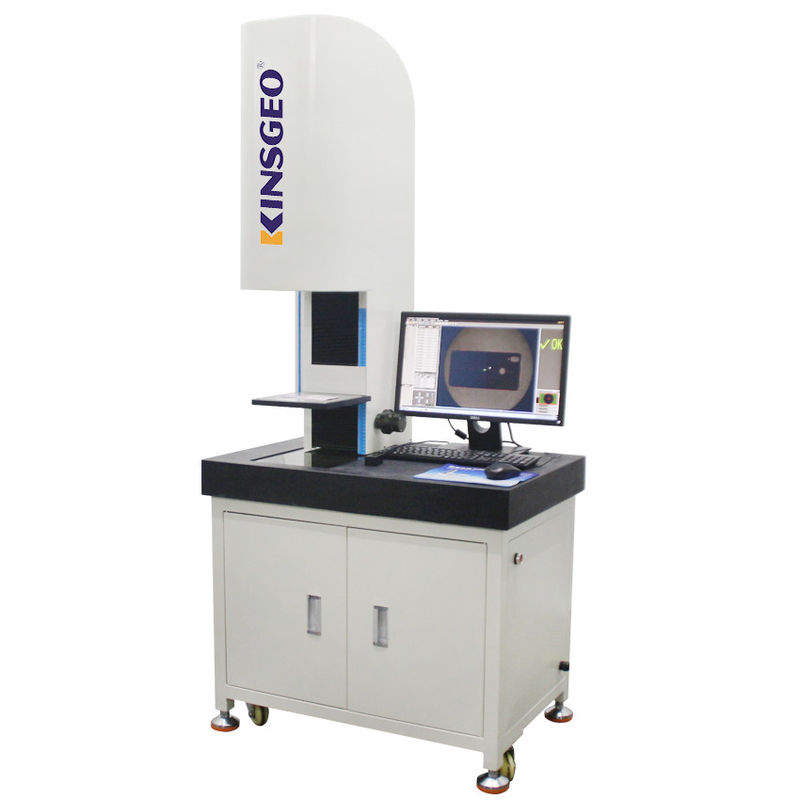

China Optical Lab Equipment CNC Video Measuring VMS Machine CE Certificate
Product Introduction:
CNC is an economic Fully Auto Vision Measuring Machine for basic measurement, three-axis motorized control, with click zoom lens, accurate manual zoom, high configuration, to meet with different application. It is widely used in Metal mold, electronic industry, medical equipment and flat panel display industry, as well as research institutes, colleges and universities, metrology institutions and dimension inspection on production line.
Product Characteristics:
² High precision X/Y/Z-axis CNC fully auto control, high position accuracy;
² “00” grade “JINANQING”marble base and pillar, stable and reliable;
² Precision linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system position;
² 0.5um high precision linear scale, ensure position and measurement accuracy;
² Imported high definition color industry digital camera, ensure clear observation and stable measurement requirement;
² 6.5X click zoom lens, precision manual zoom, only need to make pixel calibration once time;
² Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
² With proprietary powerful function fully auto measuring software iMeasuring 4.0;
² Can set auto measurement, and finish batch measurement with high efficient;
² Laser, probe, coaxial illumination and other parts are optional;
² Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
Video System** | High definition 1/3" Color CCD Camera, |
6.5X continue click zoom lens; optical magnification: 0.7X-4.5X; video magnification:26X~172X(21.5”monitor) |
Field of View(mm) (Diagonal * Horizontal*Vertical) |
Lens Magnification | 0.7X | 1X | 2.0X | 3.0X | 4X | 4.5X | ||
1/3"CCD | 8.57x6.86x5.14 | 6.00x4.80x3.60 | 3.00x2.40x1.80 | 2.00x1.60x1.20 | 1.50x1.20x0.90 | 1.33x1.07x0.80 | |||
Illumination | Contour | LED Parallel Contour Illumination | |||||||
Surface | 5-ring 8-division 0~255 grade continue adjustable | ||||||||
Software System | iMeasuring 4.0 Fully Auto Measuring Software | ||||||||
Load Capacity (Kg) | 25 | 25 | 20 | ||||||
Working Environment | Temperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz |
Dimension(mm) | 1200x780x1650 | 1350x880x1650 | 1420x980x1650 |
Weight(Kg) | 380 | 450 | 600 |
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1. Device installation 2. Equipment Operation Test Technology training 3. Equipment Calibration 4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1. Product Instruction; 2. Product operation instruction/video; 3. Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication; 2. Mail Seamless Docking; 3. Video Conferencing; 4. Artificial free door-to-door service
