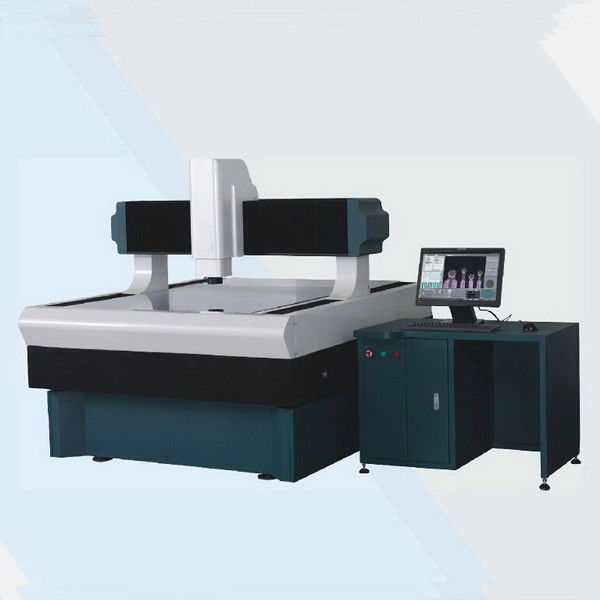

| Product Name: | Coordinate Measuring Machines | Item: | Cnc Video Measuring System |
|---|---|---|---|
| High Light: | 0.5'' Coordinate Measuring Machines,200mm Z Stroke Coordinate Measuring Machines,200mm Z Stroke cnc video measuring system |
||
It adopts original imported from Japan screw drive and servo control technology, combined with our self-developed automated measurement software, it has been widely used in LCD display parts, PCB, communication device parts, sheet metal, space industry and other industries for precision auto measurement.
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting and universal 3D Model file for professional design software like Solidwork, UG & Pro-E.
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness,
flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1) Machinery: sheet, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2.Grade 00 JINANQING granite base, gantry structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
3. Programmable control of integrated 40 groups, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
| 04177… | 001 | 002 | 003 | 004 | 005 | 006 | 007 |
| Model | VMG0203 | VMG0405 | VMG0608 | VMG0810 | VMG1012 | VMG1215 | VMG1518 |
| Glass Size (mm) | 300*400 | 500*600 | 700*900 | 900*1000 | 1100*1300 | 1300*1600 | 1600*1900 |
| X,Y Stroke (mm) | 200*300 | 400*500 | 600*800 | 800*1000 | 1000*1200 | 1200*1500 | 1500*1800 |
| Z Stroke(mm) | 200 | ||||||
| Load Capacity | approx. 35 kg | ||||||
| Dimension (mm) | 820*1020*1600 | 1020*1220*1600 | 1220*1520*1600 | 1420*1720*1600 | 1620*1920*1600 | 1820*2220*1600 | 2120*2520*1600 |
| Weight(kg) | 1000 | 1250 | 1380 | 2000 | 2500 | 3000 | 4000 |
| Resolution | 0.5μm | ||||||
| Camera | TEO™ 1 / 2" CCD Camera | ||||||
| Zoom Lens | professional auto zoom lens Zoom lens magnification: 0.7-4.5X | ||||||
| Video Magnification | 20-128X | ||||||
| FOV | 12.7 mm | ||||||
| Accuracy E1* | Ex,y ≤ (2.8+L/200)μm | Ex,y ≤ (3.5+L/200)μm | Ex,y ≤ (4.5+L/200)μm | ||||
| Accuracy E2* | Exy ≤ (3.3+L/200)μm | Exy ≤ (4.5+L/200)μm | Exy ≤ (5.8+L/200)μm | ||||
| Accuracy E3* | Ez ≤ (2.5+L/100) μm | ||||||
| Illumination | Surface and transmitted light source adopt LED, brightness adjustable | ||||||
* All data is tested according to Standard JJF1318-2011
L is measured length (units: mm)
Specifications subject to change without notice
