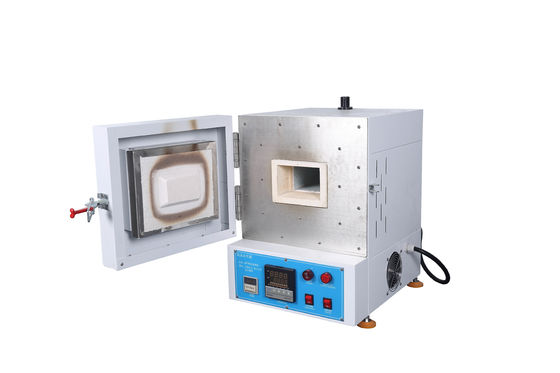

1200 Degree Electric Muffle Furnace , 220v 2.5kw Heat Treatment Oven

small.img.alt small.img.alt small.img.alt

Large Image :  1200 Degree Electric Muffle Furnace , 220v 2.5kw Heat Treatment Oven

Product Details:
Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-3020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: Standard size in stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Detailed Product Description
Usage: Process Testing Machine System: Chinese,English Optional
Operation: LCD Or PC OEM Orde: Acceptable
Temperature Range: RT~1200℃ Accuracy: ±1
Power: 1200W Heating Time: RT~1200℃ About 60 Minutes
Style: 1200.C Electric Muffle Furnace Size: 550×440×600 Mm
Classfication: Lab Heating Equipment
High Light:

2.5kw electric muffle furnace


1200 Degree electric muffle furnace


220v heat treatment oven

1200 Degree Heat Treatment Electric Muffle Furnace 220v 2.5kw Electric Muffle Furnace


Available for industrial and mining enterprises, scientific research units, such as laboratory for chemical analysis, physical testing and general small steel heat treatment.

  • Easy to installation,
  • Electric furnace adopts domestic advanced technology,
  • Rectangular monolithic lining made of silicon carbide refractory material,
  • Furnace is sealed structure, electric oven brick, brick oven door uses lightweight.
  • Made of high quality steel plate after flanging welding pull, control box with furnace body as a whole structure,
  • Iron chromium aluminum wire wound spiral heating element of wear on the inside lining, bottom, left and right wire slot.




Name Model Inner size(mm)H*W*D Outer size(mm)H*W*D Voltage(V) Power(KW) Rated temp(°C)
Box tape furnace KJ-2.5-10 80×120×200 500×440×575 220 2.5




KJ-4-10 120*200*300 500×460×530 220 4
KJ-8-10 160×250×400 610×580×720 380 8
KJ-12-10 200×300×500 690×610×870 380 12
KJ-2.5-12 80×120×200 550×440×600 220 2.5 1200
KJ-5-12 120×200×300 550×570×630 220 5
KJ-12-12 200×300×500 690×610×870 380




1200 Degree Electric Muffle Furnace , 220v 2.5kw Heat Treatment Oven 0

KeJian Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1. Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service1200 Degree Electric Muffle Furnace , 220v 2.5kw Heat Treatment Oven 1
