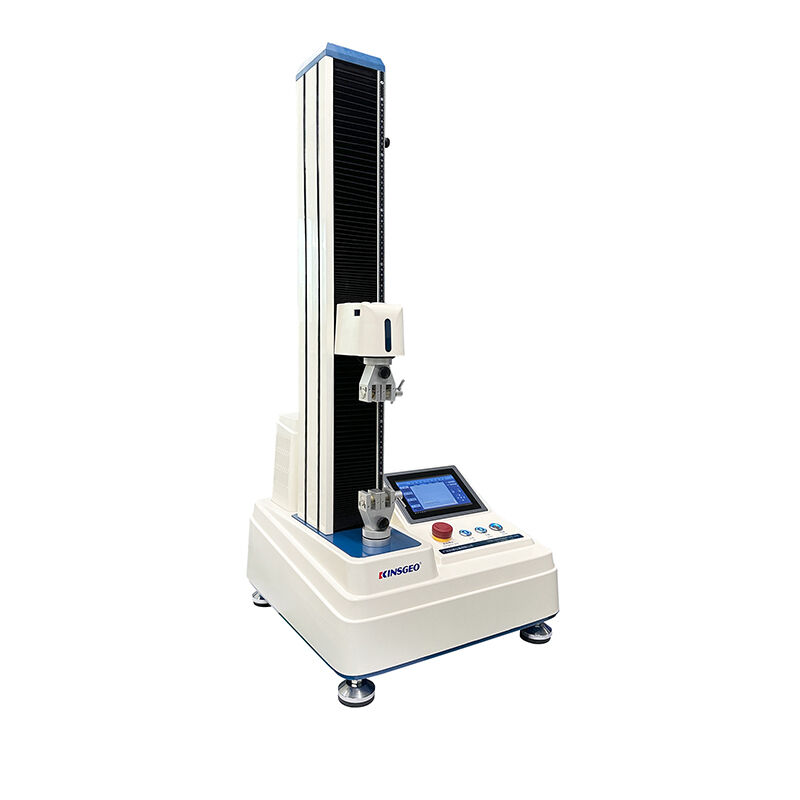

AC Motor 850mm UTM 2020 Universal Testing Machines

AC Motor 850mm UTM 2020 Universal Testing Machines
AC Motor 850mm UTM 2020 Universal Testing Machines AC Motor 850mm UTM 2020 Universal Testing Machines AC Motor 850mm UTM 2020 Universal Testing Machines

Large Image :  AC Motor 850mm UTM 2020 Universal Testing Machines

Product Details:

Place of Origin: CHINA
Brand Name: KINSGEO
Certification: CE,ISO
Model Number: KJ-1065A-H

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 set per month
Detailed Product Description
Capacity: 1 , 2 , 5 , 10 Kg Accuracy: Class 1 (0.5 Optional)
Warranty: 12 Months Product Name: Computer Control Single Column Universal Testing Machine
Motor: Panasonic Servo Motor Operation: Computer Software Operation
Usage: Universal Testing Machine Weight: 60kg
Stroke: 850 Mm (contain Clamps) Color: White And Blue
High Light:

UTM 2020 Universal Testing Machines

,

850mm Universal Testing Machines

,

PSTC7 Peeling Force Testing Machine

UTM 2020 New Machine Tensile Testing Machine Peeling Force Testing Machine





Uses:



This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.



Design standard:



ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7



Character:



1 That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

2 Have steady performace, high accuracy, powerful software function and easy operation.

3 Use the USA high-precision load cell.



Specifications:

Capacity choice 1 , 2 , 5 , 10 Kg
Stroke 650mm(excluding clamp)
Range of speed 0.01~500mm/min
Effective testing space 1200mmMAX
Accuracy ±0.5%
Operation method Windows operation
Motor AC motor
Accessories printer, system operation manual,pair of clamp
Optional accessories stretcher, clamp
Resolution 1/150,000
Weight 70kg
Dimention (W×D×H)58×58×125cm
Power AC220V, 50/60Hz



Safety Device:



Stroke protection:Upper and lower protection, prevent over preset

Force protection:system setting

Emergency stop device:Handling emergencies.



Software functions:



  • Use windows working platform, set all parameter with dialog forms and operate easy;
  • Using a single screen operation, do not need to change the screen;
  • Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
  • Plan test sheet mode freely;
  • Test data can be directly appeared in the screen;
  • Compare multiple curve data through translation or contrast ways;
  • With many units of measurement, the metric system and british system can switch;
  • Have automatic calibration function;
  • Have user-defined test method function
  • Have test data arithmetic analysis function
  • Have the function of automatic magnification, to achieve the most appropriate size of graphics;
