|MOTOR:||Panasonic Servo Motor||CONTROL:||PC|
|CAPACITY:||22.214.171.124.126.96.36.199.500kg Optional||SENSOR:||USA Sensor|
|APLICATION:||Rubber ,plastic ,nylon ,leather And Etc||DESIGN STANDARD:||ASTM ,GB/T16491 And Etc|
|Dimension:||(W×D×H) 58×58×125cm||Keywards:||Universal Testing Machine|

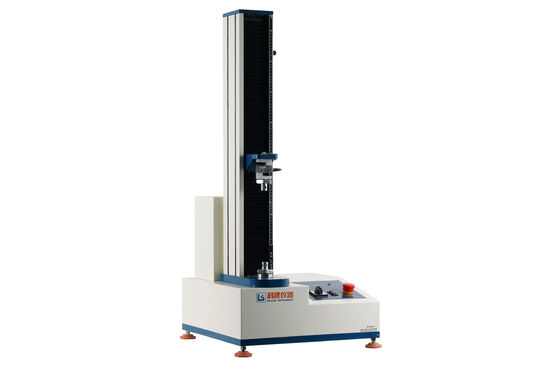

500KG High Precision Universal KJ-1065A Single Column Compression Testing Machine
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
B. Having steady performance, high accuracy, powerful software function and easy operation.
C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.
|Range of speed||0.5-1000mm/min|
|Motor||Japan Panasonic Servo Motor|
|Capacity choice||188.8.131.52.184.108.40.206.500kg optional|
|Effective testing space||120mm max|
|Operation method||Windows operation|
|Accessories||computer, printer, system operation manual|
|Optional accessories||stretcher, air clamp|
|Power||1PH, AC220V, 50/60Hz|
|Stroke protection||Upper and lower protection, prevent over preset|
|Force protection||system setting|
|Emergency stop device||Handling emergencies|
2.Product Design Standard
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.
Our factory Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise
which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.
4.Attend the fair
We attend international exhibitions three to five times every year, and domestic exhibitions five to ten times every year, We hope to have the opportunity to invite you to visit our booth in future.
5.Certifications and letters patent
1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.
2).Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.
3).Certificate services: Complying with our clients' request, we can provide related certificates to clients freely
4).Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .
If you want get more details ,or can not find out what are you looking for,pls feel free to contact me,i will do my best for you.
Contact Person: Miss. Silivia Zhang
