330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester

China 330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester supplier
330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester supplier 330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester supplier 330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester supplier 330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester supplier 330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester supplier

Large Image :  330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester

Product Details:

Place of Origin: China
Brand Name: KEJIAN
Certification: ISO CE
Model Number: ENG-300N

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 1800-2000USD\ SET
Packaging Details: wooden case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50SET\MONTH
Contact Now
Detailed Product Description
Measuring Range/ Division Value: 300N Machine Size: 1050x540x300mm
Length Range Tested: 150mm-870mm Width Stroke: 330mm
Warranty: 1 Year Voltage: 220V 50HZ
Keywards: 300N Torque Wrench Tester
High Light:

tensile strength instrument

,

universal tensile testing machine

Laboratory Testing Machine With High Precision High Solution 300N 500N Torque wrench tester

1.First, the function:

ENJ Torque Wrench Verifier is a special equipment for testing torque wrenches and torque generators. It is mainly used to test various fixed-force torque wrenches, digital torque wrenches, preset torque wrenches, torque screwdrivers, screwdrivers and Instruments and products that involve tightening forces. Widely used in electrical manufacturing, machinery manufacturing, automotive light industry and professional research and testing industries.

2.Second, the main features:

1. High precision, high resolution, fast sampling speed and full screen display.
2, using high-precision torque sensor, with torque direction display.
3, the upper and lower limit settings, red and green indicators and buzzer sound and light alarm.
4. The three units are interchangeable and can be selected (N•m, kgf•cm, Ib•in).
5, real-time, peak, automatic peak three modes can be switched at will.
6. It adopts USB interface to communicate with PC. Synchronous test function can be connected to computer test. The test force curve graph and the detailed test force record during the test can be displayed synchronously on the computer, and can be saved, printed and analyzed.
7. Peak hold, automatic release function, and release time free setting.
8, large storage, can save 99 sets of test data.
9, no operation automatic shutdown function, time can be set freely.

3.Third, the specification parameters:


      Model

    Index

ENJ-300ENJ-500
Measuring range/ division valueN·m

   300.00/0.01

    500.00/0.01

Kg·cm

  3063.1/0.1

  5105.2/0.1
Ib·in 2658.6/0.1   4431.1/0.1
Machine size

1050x540x300mm

Length range tested

150mm-870mm

Width stroke330mm
Height stroke90mm
Accuracy+-1%
Peak sampling frequency2000Hz
Power7.2v1.2vx6 NiMH battery pack
Charging time4-6hours
Battery lifeAroud 10 hours
Battery life≥300 times
Power AdapterAdapter Input::AC 220V 50Hz Output:DC 12V 500mA
Net weight55kg

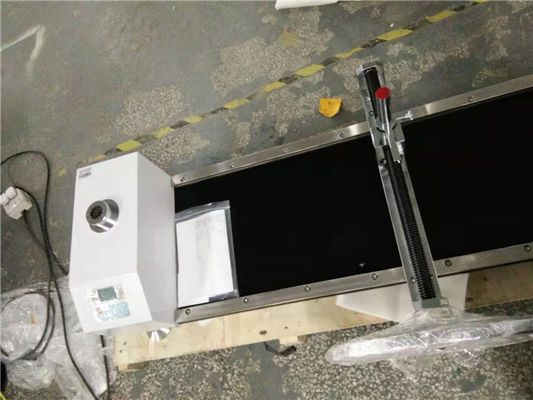

330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester 0
330mm Width Stroke Universal Testing Machines High Solution 300N 500N Torque Wrench Tester 1


4.Product Design Standard


ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.

5.Company Information


Our factory Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise
which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.

Testing Machine



6.Attend the fair



We attend international exhibitions three to five times every year, and domestic exhibitions five to ten times every year, We hope to have the opportunity to invite you to visit our booth in future.
3_

7..Certifications and letters patent

10_


8.Packaging & Delivery

Packaging Details:Disposable Plastic Apron PE Film Making Machine uses international standard package, big wooden cases
Delivery Time: 10-20 days after received deposit
Testing Machine



9.Our services


1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.
2).Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.
3).Certificate services: Complying with our clients' request, we can provide related certificates to clients freely
4).Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .
10.Contact us

If you want get more details ,or can not find out what are you looking for,pls feel free to contact me,i will do my best for you.
