Product Details:
Payment & Shipping Terms:
|
Model: | KJ-1065A | CONTROL: | PC |
---|---|---|---|
ACCURACY: | ±0.5% | Max Test Space: | 850mm |
SENSOR: | USA Sensor | MOTOR: | Panasonic Servo Motor |
TEST SPEED: | 0.5-500mm/min Selectable | CAPACITY: | 100N, 200N, 500N |
APLICATION: | Tape,adhensive,film Etc | DESIGN STANDARD: | ASTM D903,GB/T16491 And Etc |
GRIPS: | Different Material And Test Method With Different Grips | ||
High Light: | tensile strength instrument,universal tensile testing machine |

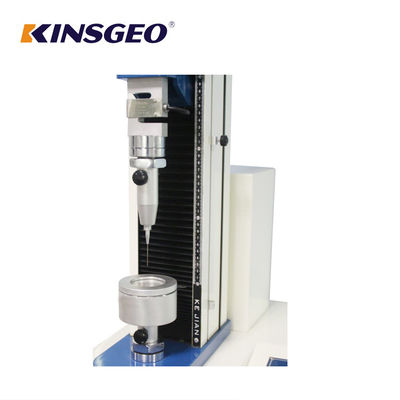

Tensile Testing Equipment For Peel Strength/Puncture strength Single Pole Universal Testing Machines
Standard
ASTM D2240-05,ISO 7619-97
Usage
Is a simple-type tensile testing machine which simple structure, convenient to operate, it can be placed in the operative table. It especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 500N.
Applicable industry:
Is widely used in tape,adhensive,film,pack film,bopp,pet,plastic.In tensile, peel, tear, the material such as textile, rubber, plastics, synthetic leather, tape, electronics, metals and others.stable speed accurate accuracy.
Technical parameters:
Model | KJ 500KN |
Maximum Load | 500N high-precision sensors from U.S.A. |
Capacity choice | 100N, 200N, 500N or less than can be self-selected |
Units | Kg, lb, N |
Measured System | Load cell + HZ-2000 |
accuracy of load measurement | the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%) |
Resolution | 1 / 50000 |
Effective test space | 850mm |
Accussories | Operate video,manual,a pair of clamp |
Testing speed | 0.5-500mm / min with stepless speed and 5 fixed-speed |
Main features:
1. Three kinds of units: N-Kgf-Lbf optional and can automatically interchange;
2. LCD liquid display with backlight can be used in low-light environments;
3. Single measurement, it can record the both peak of tension and compression in two directions, and automatic or manual cleared zero;
5. Auto printing function;
6. Starting up using password protective feature, which can effectively prevent the non-operators from using
7. ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
. Overload protective function can be set, effectively preventing machine from overload;
180 Degree peel force
Puncture force
