| Motor: | Panasonic Servo Motor | Control: | PC Control |
|---|---|---|---|
| Test Speed: | 0.５-500mm/min Selectable | Accrancy: | ±0.5% |
| Capacity: | 5,10,20,25,50,100,200,500KG Optional | Aplication: | Rubber ,plastic ,nylon ,metal,leather And Etc |
| Stardand: | ASTM D903,GB/T16491 And Etc | Grips: | Different Material And Test Method With Different Grips |
| Effective Space: | 1200mm | Weight: | 80KG |

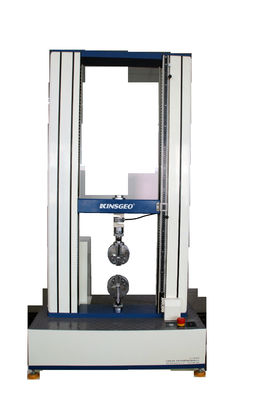

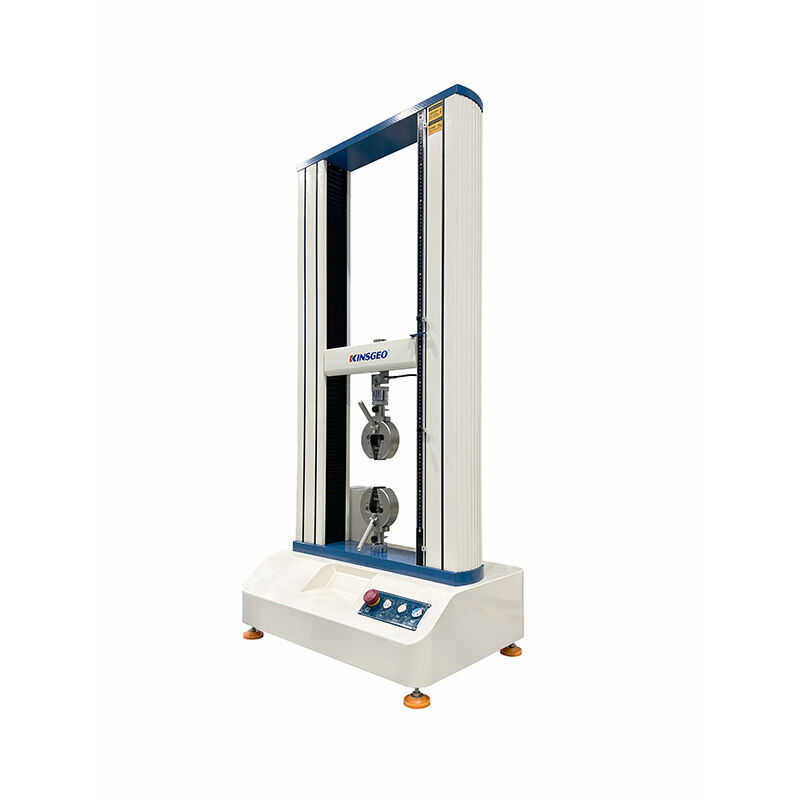

High Efficiency Motor Double Pole Universal Testing Machine with Electrical Control for Testing Peel Strength
Standard
ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM D638,ASTM D412.
Products Description
It is widely used in controling material quality.Universal Tensile Strength Testing Machine, Tensile Tester is suitable to test tensile stress, compressive stress, shearing force, and elongation of materials, components, and finished products..
Application Industries
Universal Tensile Strength Testing Machine, Tensile Tester is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Main features of Universal Tensile Strength Testing Machine
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Accessories
1.Suitable Grips that meet customer sample need.
2.Software for test control,data acquisition and report.
3.English operation teach video.
4.Tabel,computer is selectable.
5.Extensometer as customer need.
Specification:
Model:1066A
Range of speed:0.5-500mm/min
Effective testing space:850mm
Motor:Japan Panasonic Servo Motor
Accuracy:±0.5%
Accessories:system operation manual,software,operate video
Dimension:(W×D×H)80×50×150cm
Weight:400kg
Clamps
Details
