|Brad Name:||KEJIAN||Place Of Origin:||China|
|Motor:||DC Motor 25~40W||Dimension:||60*25*105cm|
|Max Stroke:||800mm(including Fixture)||Weight:||36KG|
DC universal test equipment,
40W tensile strength instrument,

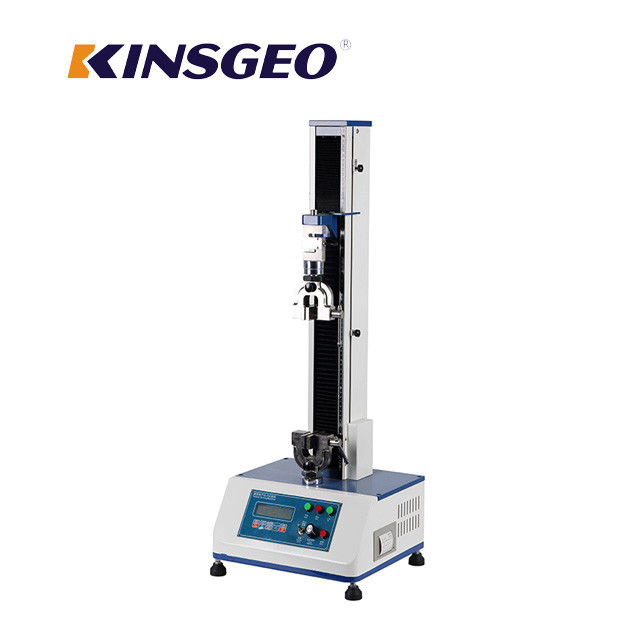

25W Desktop Tensile Testing Machine
Factory Frice Use to Tape Plastic Precise Universal Tester Desk-top Tensile Testing Machine
Use:Is applicable to testing tensile strength, elongation, compression strength, bending resistance, tearing force, peeling force, adhesive force and shearing force for specimen, semi-produce and material.
Minimum test precision test
20 g / 25 mm, to tape, protective film, release paper, from type membrane electronic material industry such as improve the quality of the product.
Meet the standard
ASTM D3330 FINAT GB/T2792
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
|Unit switchover||kg, N|
|Max stroke||600mm(not including fixture)|
|Motor||DC motor 25~40W|
The sample test
free end folded 90 degrees, and peel away from the test board, adhesive surface is 25 mm. The sample and test plate clamp on the free end, the gripper. Should make stripping surface consistent with the tester lines of force. Testing machine with 300 mm/min + 10 mm stripping speed continuous strip, strip stripping value of the test strip, averaged four points.
(GB/T2792-1998 adhesive tape peel strength test standard)
Stroke protection: upper and low limit protection, prevent over preset
Force protection: system setting
Emergency stop device: Handling emergencies.
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on
