Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester

Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester
Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester

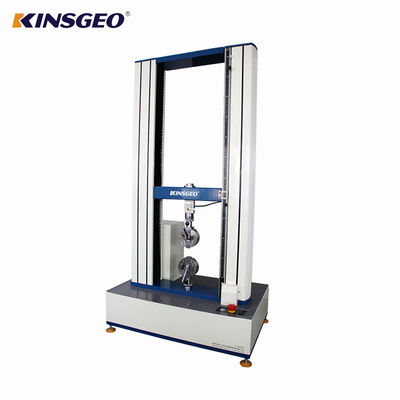

Large Image :  Tape Tensile Universal Testing Machines With AC Motor / Computer Control Tester

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE etc.
Model Number: KJ-1066B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Standard export plywood case, safe and strong enough for delivery.
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 Unit/ week
Detailed Product Description
Model: KJ-1066B Brand Name: KEJIAN
Place Of Origin: China Motor: AC Motor
Test Speed: 50-500mm/min Selectable Weight: 400KG
Aplication: Rubber ,plastic ,Tape ,leather And Wire Etc.. Capacity: 5,10,20,25,50,100,200,500kg Optional
Accrancy: ±0.5% Design Stardand: ASTM D903,GB/T16491 And Etc
High Light:

universal test equipment

,

tensile strength instrument

Tape Tensile Testing Machine Computer Control Tester for Tape



1.Description

Universal Tensile Strength Testing Machine, Tensile Tester is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.



Application Industries

Universal Tensile Strength Testing Machine, Tensile Tester is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.





Main features

1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.

2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.

3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation

4. Data transmission: RS232, and displacement resolution: 0.001mm

5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.

2.Specification:

The parameters for the company Standard Model parameters, we support customer customization parameters

Item Description
Max. Force 2000 kg (20KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1200mm including fixture
Load cell Resolution 1/250,000
Load Precision ≤0.5%
Test speed 50~500mm/min (adjustable by PC)
Test width ≤850mm
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat
