Payment & Shipping Terms:
|Place Of Origin:||China||Motor:||Panasonic Servo Motor|
|Test Speed:||0.1-500mm/min Selectable||Contorl:||PC|
|Aplication:||Rubber ,plastic ,nylon ,leather And Etc||Capacity:||5,10,20,25,50,100,200,500kg Optional|
|Accrancy:||±0.5%||Design Stardand:||ASTM D903,GB/T16491 And Etc|
20KN universal test equipment,
TM 2101 universal tensile testing machine
Computer Control Panasonic Servo Tester for Tape Tester Tape Peel Strength Testing Machine
Universal Tensile Strength Testing Machine, Tensile Tester is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.
Universal Tensile Strength Testing Machine, Tensile Tester is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
The parameters for the company Standard Model parameters, we support customer customization parameters
|Max. Force||2000 kg (20KN)|

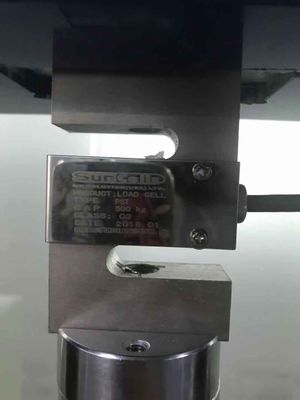

|Load cell||Germany brand load cell for high accuracy|
|Control system||PC with windows 7 system|
|Motor||Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod|
|Force reading||kgf, Ibf, N, KN, T etc|
|Stoke||1200mm including fixture|
|Load cell Resolution||1/250,000|
|Test speed||0.1~500mm/min (adjustable by PC)|
|Curves display||Load- elongation, Elongation-time, Time-elongation, Stress-strain|
|Data display||Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…|

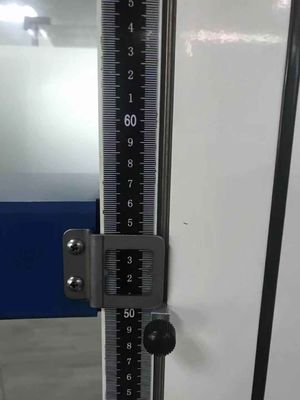

Upper and lower limit switches
Load sensor with automatic retreat
