Product Details:
Payment & Shipping Terms:
|
Materials: | 304# Stainless Steel | Temperature Range: | RT+20℃~70℃ |
---|---|---|---|
Temperature Uniformity: | ±1℃ | Temperature Fluctuation: | ±0.5℃ |
Temperature Control: | PID SSR Control | Humidity Range: | ≥90%RH |
Lifetime Of Lamp: | 1600Hours | Effective Irradiation Area: | 900×210mm |
Standard Specimen Size: | 75×290mm/24 Pieces | Power: | 1 Phase, 220V/50Hz /±10% 5KW |
Highlight: | climatic test chamber,thermal shock test chamber |

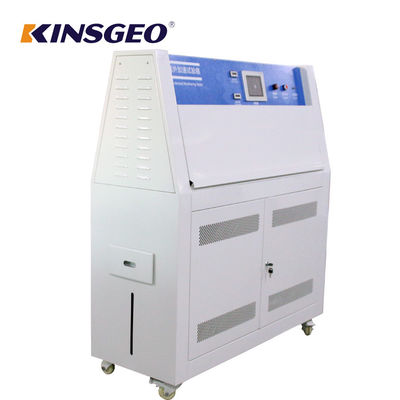

RT+20℃~70℃ PC Control uv Testing Equipment With Life Time 1600 Hours
Corresponding standard:
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
Product Applications:
UV accelerated weathering test chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.
UV test profile :
Technical Parameters:
Model | KJ-9029 | |
Test chamber size(L×W×H)mm | 1170×450×500(mm) | |
Outside dimension(L×W×H)mm | 1350×540×1480(mm) | |
Chamber materials | 304# stainless steel | |
Temperature range | RT+20℃~70℃ | |
Temperature uniformity: | ±1℃ | |
Temperature fluctuation: | ±0.5℃ | |
Temperature control | PID SSR control | |
Humidity range | ≥90%RH | |
Controller | TEMI 880 programmable controller, touch screen, LCD display | |
Control mode | Balance temperature humidity control (BTHC) | |
Communication function | Be able to control the machine via computer using TEMI control software through RS-232 port on the machine | |
Test cycle setting | Illumination, condensation and water spray test cycle is programmable | |
Distance from specimen to lamp | 50±3mm (adjustable) | |
Center distance between the lamps | 70mm | |
Lamp power & length | 40W/Piece, 1200mm/Piece | |
Lamps amount | 8 pieces of UVA-340 or UVB-313 imported lamps | |
Lifetime of lamp | 1600Hours | |
Irradiance | 1.0W/m2, adjustable directly on TEMI 880 touch screen controller | |
Wavelength of ultraviolet light | UVA is 315-400nm and UVB 280-315nm | |
Effective irradiation area | 900mm×210mm | |
Irradiation black panel temperature | 50℃~70℃ | |
Standard specimen size | 75×290mm/24 pieces | |
Water depth for water channel | 25mm, automatically control | |
Water consumption | 8L/day, tap water or distilled water | |
Testing time | 0~999H, adjustable | |
Power | 1 phase, 220V/50Hz /±10% 5KW | |
Protection | Overload short circuit protection, over temperature protection, water lacking protection |
Standard accessories:
1. One copy of English user guide.
2. One CD of controller software and operation instruction video.
Kindly note:
1. Please advise whether 8 UVA or 8 UVB lamps are needed when order.
2. UVA-340 lamps can well simulate the natural outdoor exposure. UVB-313 lamps are able to do accelerated test more quickly via stronger irradiation.
Illustration on control systems:
1. English control panel
2. Parts View
3. Chamber Inside
4. TEMI880 LCD touch screen controller
5. Control interface on computer
Safety protection:
1. Ground fault protection
2. Power overload, short circuit breaker
3. Control circuit overload, short circuit fuse
4. Water lacking protection
5. Over-temperature protection
Usage requirements:
1. Environmental temperature: 5℃~+32℃
2. Environmental humidity: ≤85% 3. Power requirement: AC220(±10%)V/50HZ
4. Capacity: 5KW
5. Fine grounding
Warranty & service assurance
1. Warranty Coverage
The warranty period for the machine is one year under normal use since the delivery date.
2. After-sales service
①The free lifetime technical support will be provided.
②Any problems or malfunction of the machine should be emailed to jessica@kejian-tech.com in time for the right solutions by our maintenance engineers or technicians.
3. The following situations will not covered by the warranty
①The failure or damage caused due to abnormal operation and man-made or natural disasters.
②The failure or damage caused due to improperly operation.
③The failure or damage caused due to improper power supply.
④The failure or damage caused due to disassemble or modification of any part (such as machine part, line, etc) without our consent.
⑤Consumable materials like UV lamps are not included in the warranty.
How to buy
● Production of the machines will begin after receiving 50% down payment. (If any specific document is needed, e.g. insurance, please advise when order.)
● The balance 50% payment will be required after production is finished.
● After receiving the balance payment, the goods will be packed and sent to customs warehouse for customs clearance which will take about 5 days until ship departure.
● Ship departure and estimated arrival date will be updated.
● Our bank information is as follows:
Beneficiary Name: KEJIAN INDUSTRIAL(HONG KONG) CO.,LTD
Beneficiary Bank: HONGKONG AND SHANGHAI BANKING CORPORATION LIMITED,THE
Bank Address:1 Queen's Road Central,Hong Kong
SWIFT:HSBCHKHHHKH
Beneficiary’s A/C: 801217209838
