|Materials:||304# Stainless Steel||Temperature Range:||RT+20℃~70℃|
|Temperature Uniformity:||±1℃||Temperature Fluctuation:||±0.5℃|
|Temperature Control:||PID SSR Control||Humidity Range:||≥90%RH|
|Lifetime Of Lamp:||1600Hours||Effective Irradiation Area:||900×210mm|
|Standard Specimen Size:||75×290mm/24 Pieces||Power:||1 Phase, 220V/50Hz /±10% 5KW|
climatic test chamber,
thermal shock test chamber

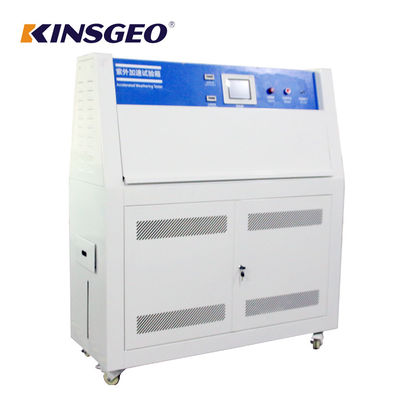

RT+20℃~70℃ UV Testing Machine With TEMI880 LCD Touch Screen
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
UV accelerated weathering test chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.
UV test profile :
|Test chamber size(L×W×H)mm||1170×450×500(mm)|
|Chamber materials||304# stainless steel|
|Temperature control||PID SSR control|
|Controller||TEMI 880 programmable controller, touch screen, LCD display|
|Control mode||Balance temperature humidity control (BTHC)|
|Communication function||Be able to control the machine via computer using TEMI control software through RS-232 port on the machine|
|Test cycle setting||Illumination, condensation and water spray test cycle is programmable|
|Distance from specimen to lamp||50±3mm (adjustable)|
|Center distance between the lamps||70mm|
|Lamp power & length||40W/Piece, 1200mm/Piece|
|Lamps amount||8 pieces of UVA-340 or UVB-313 imported lamps|
|Lifetime of lamp||1600Hours|
|Irradiance||1.0W/m2, adjustable directly on TEMI 880 touch screen controller|
|Wavelength of ultraviolet light||UVA is 315-400nm and UVB 280-315nm|
|Effective irradiation area||900mm×210mm|
|Irradiation black panel temperature||50℃~70℃|
|Standard specimen size||75×290mm/24 pieces|
|Water depth for water channel||25mm, automatically control|
|Water consumption||8L/day, tap water or distilled water|
|Testing time||0～999H, adjustable|
|Power||1 phase, 220V/50Hz /±10% 5KW|
|Protection||Overload short circuit protection, over temperature protection, water lacking protection|
1. One copy of English user guide.
2. One CD of controller software and operation instruction video.
1. Please advise whether 8 UVA or 8 UVB lamps are needed when order.
2. UVA-340 lamps can well simulate the natural outdoor exposure. UVB-313 lamps are able to do accelerated test more quickly via stronger irradiation.
Illustration on control systems:
1. English control panel
2. Parts View
3. Chamber Inside
4. TEMI880 LCD touch screen controller
5. Control interface on computer
1. Ground fault protection
2. Power overload, short circuit breaker
3. Control circuit overload, short circuit fuse
4. Water lacking protection
5. Over-temperature protection
1. Environmental temperature: 5℃~+32℃
2. Environmental humidity: ≤85% 3. Power requirement: AC220(±10%)V/50HZ
4. Capacity: 5KW
5. Fine grounding
Warranty & service assurance
1. Warranty Coverage
The warranty period for the machine is one year under normal use since the delivery date.
2. After-sales service
①The free lifetime technical support will be provided.
②Any problems or malfunction of the machine should be emailed to email@example.com in time for the right solutions by our maintenance engineers or technicians.
3. The following situations will not covered by the warranty
①The failure or damage caused due to abnormal operation and man-made or natural disasters.
②The failure or damage caused due to improperly operation.
③The failure or damage caused due to improper power supply.
④The failure or damage caused due to disassemble or modification of any part (such as machine part, line, etc) without our consent.
⑤Consumable materials like UV lamps are not included in the warranty.
