Product Details:
Payment & Shipping Terms:
|
| Usage: | Process Testing Machine | System: | Chinese,English Optional |
|---|---|---|---|
| Operation: | LCD Or PC | OEM Orde: | Acceptable |
| Accuracy: | ±1%（1℃）at-room 100ml 100℃ | Material: | SUS#304 Corrosion Resistant Plate |
| Power: | 1φ、220v/50Hz | Volume: | 80L,150L,225L,408L,800L,1000L(can Be Customized) |
| Nozzle Qty: | 1681-2601 Pcs | Temperature: | Normal Temperature~300℃ |
| High Light: | climatic test chamber,environmental testing equipment |
||

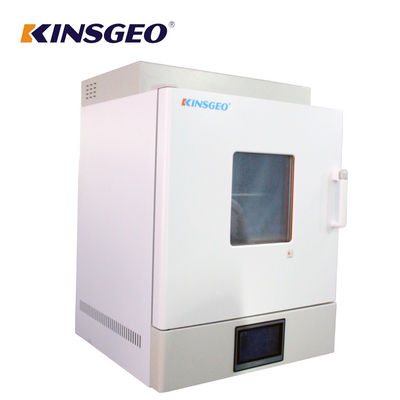

High Temperature 300°C English Optional large Oven With Volume 408L 800L 1000L
Introduction:
All Customize Hot Air High Precision Industrial Oven with Trays or Carts can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.
Characteristics:
1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. oven for painting used new high temperature resistant long shaft motor
3 Turbine fan.
4.Silicone forced tight for it
5.Overtemperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7. Heating system of LY-660 industrial hot air circulation drying oven: PID+S.S.R.
8. Industrial Oven For Painting Use The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.
Introduction:
All Customize Hot Air High Precision Industrial Oven with Trays or Carts can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.
Specifications:
|
Model |
Inner Size W*H*D(cm) |
External Size W*H*D(cm)
|
Temperature Range(°C) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| KJ-645 | 45×40×40 | 66×92×55 |
(A-D) A:200°C B:300°C C:400°C D:500°C
|
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| KJ-660 | 50×60×50 | 70×125×65 | ±0.3 | ±1% | 4.5 | |||
| KJ-690 | 60×90×50 | 80×156×65 | ±0.3 | ±1% | 5.5 | |||
| KJ-6100 | 80×100×60 | 100×166×75 | ±0.3 | ±1% | 8 | |||
| KJ-6120 | 90×120×60 | 110×186×75 | ±0.3 | ±1% | 10 | |||
| KJ-6140 | 140×120×60 | 160×186×75 | ±0.3 | ±1% | 12 | |||
| KJ-6160 | 160×140×80 | 180×206×97 | ±0.3 | ±1% | 14 | |||
| KJ-6180 | 180×140×100 | 200×200×118 | ±0.3 | ±1% | 16 |
Contact Person: Sophia Cai
Tel: +8613929477992
