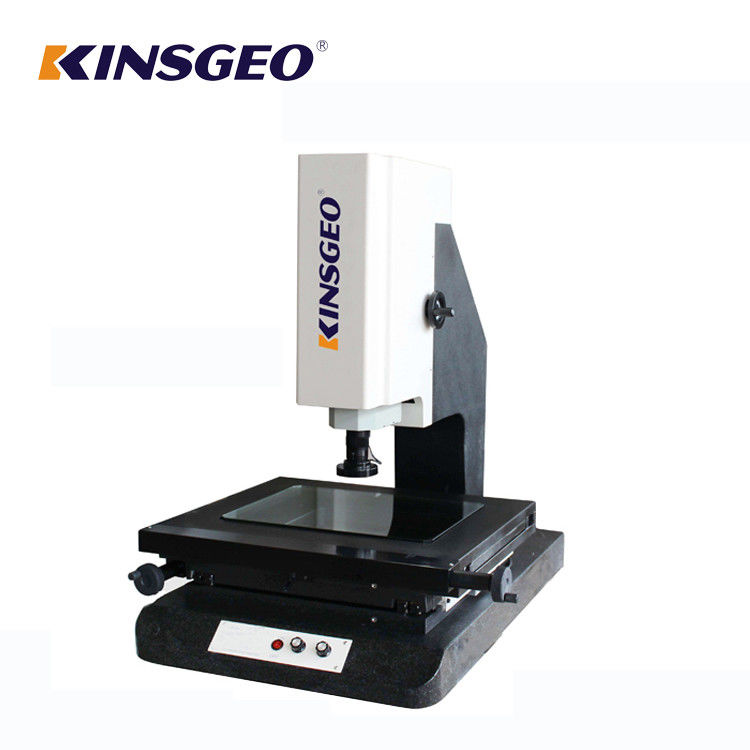

18kg Image Coordinate Measuring Machines Manual Operation With 1 Year Warranty

small.img.alt small.img.alt

Large Image :  18kg Image Coordinate Measuring Machines Manual Operation With 1 Year Warranty

Product Details:
Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-D008
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: Standard size in stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Detailed Product Description
Usage Strength: Measuring Machine Warranty: 12 Months
Aplication: Optical Instruments Weight: 18kg
Resolution: 0.005μmu Power: 220 VAC ± 10%,u 50Hz
Display: 4x16 LCD With Backlight Measurement Speed: 0.1,0.32,1u
High Light:

coordinate measuring instrument


coordinate measuring equipment

220 AC ± 10%,u 50Hz Manual Operation Image Measuring Machine WIth 1 Year Warranty



Manual operation image measuring machine Uses:

Usd to in all application area whose goal is the coordinate,such as in machinery, electron, instrument and plastic industry.



  • Ø Varifocus objective and cross curve generator is used as the measure aim-taking system
  • Ø This tester has many functions,such as data processing,showing,input,output function, especially workpiece adjusting function is very convenient.
  • Ø High resolution with 9 section object glass,no need to re-choose the plotting scale when change the multiplying power.
  • Ø Use the R232 interface,After connecting the computer,it can measure the sample , data processing and output the data by using the computer.


Technical parameters:

1 Model KJ-VMS1510 Manual KJ-VMS 2010Manual KJ-VMS 3020Manual KJ-VMS 4030Manual
2 Main size 700*560*850mm 700*560*850mm 850*600*900mm 970*670*940mm
3 Metal platform size 345*250mm 345*250mm 450*350mm 650*350mm
4 Glass platform size 220*150mm 220*150mm 340*240mm 480*370mm
5 Real impulse stroke 150*100*120mm 200*100*130mm 300*200*150mm 400*300*150mm
6 Weight 130KG 140KG 200KG 250KG
7 Machine bottom 00level granite
8 Linear accuracy (3+L/75)µm
9 Surface lighting LED ring form super bright cold light source(luminance adjustable)
10 Outline shining LED super bright roundness light(luminance adjustable)
11 Calculate, calculate function REICA 2.5D precision measurement system software
12 Analysis force 0.001mm
13 Repeat accuracy 0.002mm
14 CCD SONYchip1/3color CCD
15 eyepiece 0.5X(can choose 1X,2x)
16 object glass 0.7X~4.5X amplification factor 20X~120X
17 power supply AC90~264V 50/60Hz
18 Load 30KG



Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.


2. Excellent after sale service:

1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.


3. Good Packaging:

Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
