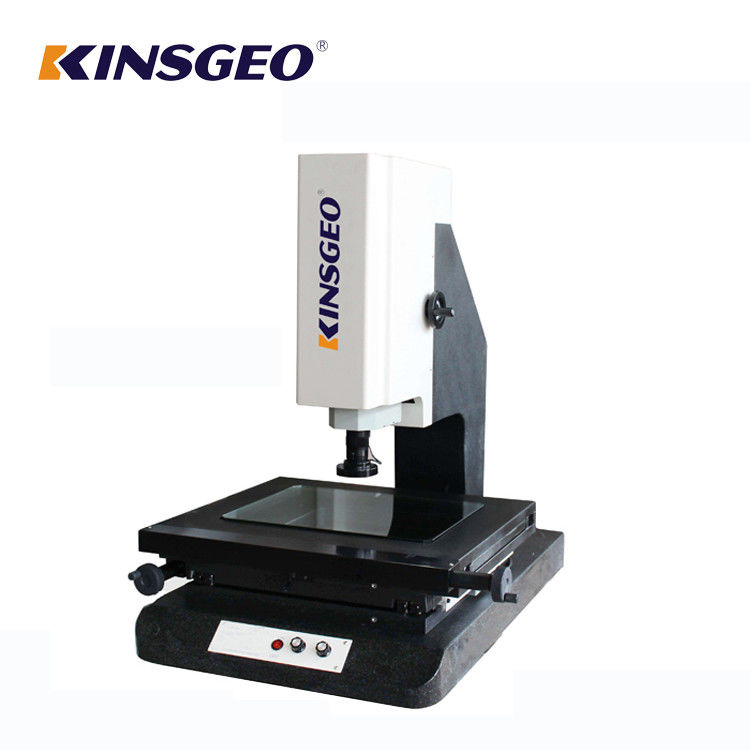

Quadratic Elements Video Measuring Machine Full Auto 220v 50hz 30w

Quadratic Elements Video Measuring Machine Full Auto 220v 50hz 30w
Quadratic Elements Video Measuring Machine Full Auto 220v 50hz 30w Quadratic Elements Video Measuring Machine Full Auto 220v 50hz 30w

Large Image :  Quadratic Elements Video Measuring Machine Full Auto 220v 50hz 30w

Product Details:
Place of Origin: Dongguan China
Brand Name: Kejian
Certification: ISO, CE and etc
Model Number: KJ-D004
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: Standard size in stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Detailed Product Description
Z-AXIS LIFT: 150 Mm LINEAR ACCURACY: (3 + L/75) μm
WEIGHT: 100kg POWER: 220V (AC), 50HZ, 30W
Photographic: Japan SONY 1 / 2 "Color CCD Monitor: 15 Inch Color Times Zoom Lens: The United States NAVITAR 0.7 ~ 4.5X Working Distance: 108mm
Video Total Magnification: 30 ~ 190X Field Of View Objects: 7 ~ 1.1mm Double Cross Line Generator Digital Resolution: 0.001mm
High Light:

coordinate measuring instrument


surface roughness measurement equipment

Full Auto Quadratic elements Video Measuring Machine Series With 220V (AC), 50HZ, 30W



Equipment discription:

This instrument applies to the second coordinate measurement for the purpose of all applications, machinery, electronics, instrumentation, plastics and other industries widely used.


Main feature:

1. Apparatus with RS-232 interface ,when connected to the computer, special measurement software M2D can process and output the mapping graph.

2. Apparatus using color CCD camera, zoom lens and the cross line generator as a measure aiming system;

3. Grating electric box with the composition of DC-3000 Digital Measurement and data processing systems;

4. Apparatus with a variety of data processing, display, input, output, particularly useful piece straighten function; users matching the printer according to their needs and target different measurement systems.


Main function:

element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.

element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.

preset elements: point, line, circle, arc.

graphics: coordinate translation, straighten the workpiece.

arbitrary axis straightened, coordinate system reset.

graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.

Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.

Set the gray scale image, saturation, contrast, image saved as a BMP format.

a variety of edge detection mode, the computer automatically get points, automatic identification circle, arc greatly enhance the speed of mining points.

image support S video input; image size 640 * 480mm.


Software’s common feature:

multi-point measurement point, line, circle, arc, ellipse, improving measurement accuracy.

straightened coordinates translation and coordinate measurement more convenient and efficient, improve the measurement efficiency.

convenient combination of elements, users simply click graph could be composed of point, line, circle, distance, angle.

macro commands, batch jobs with a kind of measurement is more convenient, made of high measurement efficiency.

measurement data directly to AutoCAD, the measurement of the graphics can be saved dxf document.

measurement data can be sent to Excel, for statistical analysis, can draw a simple Xbar-S control chart, calculated Ca, and other parameters.

multilingual interface switching.

record user program, editing commands, taught to perform.


Technical parameter:







Metal table size (mm)


354 ×228


Glass table size (mm)


210 ×160


Travel mileage (mm)


150 ×100


Weight( kg )




Measurement and aiming system


Camera: Color 1 / 3 "CCD camera Zoom lens magnification: 0.7 ~ 4.5 ×


Video Total magnification: 30 ~ 230 × Field of view objects: 7 ~ 1.1mm


Working distance: 108mm


Z-axis lift: 150 mm


Digital Resolution: 1μm


X.Y coordinate measuring indication error ≤ 3 + L/200) μm


Lighting: Surface light and transmission light are using LED, adjustable brightness Power: 220V (AC), 50HZ, 30W


Measurement software: standard with automatic measurement software can automatically find edges, deburring, measurable point, line, circle, center distance, angle, put right, etc.
