Payment & Shipping Terms:
|Aplication:||Salt Spray Machine||Warranty:||12 Months|
|Usage Strength:||Test Chamber||Power:||1φ、220V/50HZ|
|Spray Capacity:||1~10cc/h||Structure Material:||F.R.P|
|Standard:||ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371||Internal Size:||90×60×50cm|
Laboratory Environmental Salt Spray and Salt Mist Corrosion Test Chamber with Power 1φ,220V/50HZ
1. Anti-corrosion, easy clean.
2. Durable quality for salt spray test.
Salt Spray Test Chamber / Testing Machine adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, after these anti-corrosive treatment to test the corrosion resistance of their products.
The table parameters for the company Standard Model parameters, we support customer customization parameters
|Model||TT-60 Salt Spray Test Chamber / Testing Machine|
|Inner Box Size (L×W×H)||60×40×45 cm|
|Outside Box Size(L×W×H)||107×60×118 cm|
|Equipment Material||Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board|
Test Chamber Temperature
|Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C
|Saturated air Barrel Temperature||Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C
|Spray Quantity||1.0~2.0 ml / 80cm2 / hr|
|PH||Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
|Brine Tank Capacity||15L|
|Multiple Safety Protection Devices||Current discharge protection, over pressure protection,over temperature protection, over load fuse protection|
|Accessories||Testing Salt/ Measuring tank/ Equipment each 1 set|
|Standard||CNS: 3627, 3385, 4159, 7669, 8886;
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770;
ASTM: 8117, B268

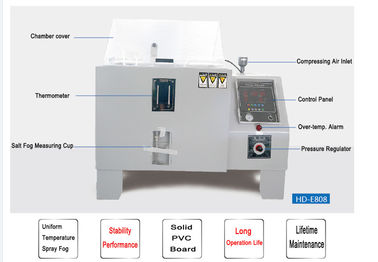

Structure Of Salt Spray Test Chamber / Testing Machine:
1. The Salt Spray Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
High precision P.I.D.temperature control meter with its error ±0.1°C.
1. Ensure the test quality, please replace the glass nozzle periodically within 4500 hours.
2. Clean the inner of the chamber and release the water in heat sink if a longer time interval from the next test.
Release the water from heat sink:open the drain value.
Release the water from isolation tank:pulled up the middle silicone plug.
Release the water from preheat tank:Pull out the internal silicone plug.
3. Don’t use the salt solution if unused for a week, avoid affecting the test quality.
4. Change the heat sink water if the test period over one month.

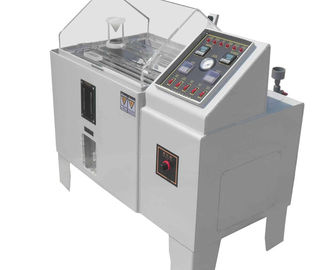

Salt Spray Test Chamber / Testing Machine View:
