Product Details:
Payment & Shipping Terms:
|
| Aplication: | Salt Spray Machine | Warranty: | 12 Months |
|---|---|---|---|
| Usage Strength: | Test Chamber | Power: | 1φ、220V/50HZ |
| Spray Capacity: | 1~10cc/h | Structure Material: | F.R.P |
| Standard: | ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371 | Internal Size: | 90×60×50cm |
| Outside Size: | 141*88*128cm |

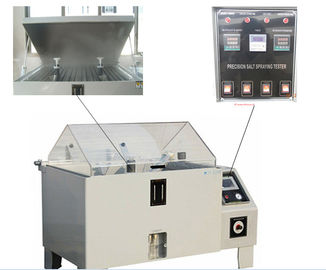

PVC Corrosion Salt Spray Test Chamber Astm-b117 For Laboratory One Year Warranty
Salt mist testing chamber1. is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment. Large walk in type salt corrosion test chamber for large size product test is available to customize.
Features
1. The chamber body is made of the German PVC corrosion resisting materials. With different size of the test bars and test tanks in the chamber.
2. the cover of the chamber is used by the transparent materials. It is clear for you to the state of the spraying and test objects in the chamber.
3. the cover and the body of the combined type salt spray tester uses water hermetically-sealed construction, with no salt fog overflow.
4. tower type mist spray system and strainer with salt liquid; fog spot go through spraying tower and spraying nozzle etc. function will be vaporific; available to adjust to salt fog settlement, with uniformity of the mist spray, excellent performance of working chamber.
Specification :
| Model | KJ-60AKJ | KJ-90A | KJ-120A |
| Inner box size: (L×W×H) cm |
60×40×45 | 90×60×50 | 120×100×50 |
| Outside box size: (L×W×H)cm |
107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material: | Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C. | ||
| Temperature range: | 35°C~55°C | ||
| Temperature fluctuations: | ≤±0.5°C | ||
| Temperature uniformity: | ≤±2°C | ||
| Temperature precision: | ±1°C | ||
| Test chamber temperature | NSS ACSS 35±1°C CASS:50±1°C | ||
| Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
| Brine temperature: | 35°C±1°C | ||
| Spray quantity: | 1.0~2.0 ml / 80cm2 /hr | ||
| PH: | NSS ACSS6.5~7.2 CASS 3.0~3.2 | ||
| Lab volume: | 108L | 270L | 600L |
| Brine tank capacity: | 15L | 25L | 40L |
| Power: | 1AC220V,10A | 1AC220V,15A | AC 1,220V,30A |
| Multiple safety protection devices: | Water shortage/ over temperature / phase protection | ||
| Standard accessories: | Test salt, measure bucket, tool etc 1 set | ||
Customize parts for Corrosion Test Chamber:
1. Inner chamber size
2. Inner chamber structure
3. PID programmable controller or PLC touch screen controller
Features :
1 Durable hard PVC construction, anti-corrosion, easy to clean.
2 Reservoirs with mixing system on stand.
3 Cabinet heated by water jacket, heating element from USA famous company.
4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5 Exposure zone lined with corrosion-resistant PVC sheets.
6 Clear cover allows viewing of test conditions.
7 Peaked cover prevents dripping of condensation onto samples.
8 Water seal and water level protection system.
9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10 Automatic DI water fill to humidifying tower.
11 Digital temperature control and readouts.
12 Integral over-protection on all heaters.
13 Low water cut-off protection on humidifying tower.
Product details:
Pictures:
