Product Details:
Payment & Shipping Terms:
|
Usage: | Process Testing Machine | System: | Chinese,English Optional |
---|---|---|---|
Operation: | LCD Or PC | OEM Orde: | Acceptable |
Environment Requirement: | 5~30℃,stable Floor, Draughty,no Heat Source Radiation | Nozzle Qty: | 1681-2601 Pcs |
Temperatur Range: | -20~150℃ \ -30~150℃ \ -40~150℃ \ -50~150℃ \-60~150℃ \ -70~150℃ | Heating Time: | Max Fastest 20℃/min(no-load) |
Appearance: | Cold-roll Steel Sheets, Corner Circular Arc | Refrigerating Fluid: | R23\R404A |
Highlight: | climatic test chamber,environmental testing equipment |

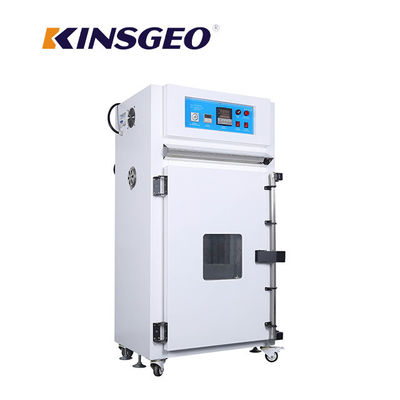

LCD Control Constant Temperature and Humidity Machine WIth Chinese,English Optional
Design Standards:
1. GB/T2423.22-2002
2. IEC 60068-2-14:1984
3. GB/T2423.1-2001 (IEC 60068-2-1:1990)
4. GB/T2423.2-2001 (IEC 60068-2-2:1974)
5. GB/T2423.13-2002 (IEC 60068-2-33:1971)
6. IEC600682-33:1997
7. GB/T 2424.13-2002/IEC60068-2-33:1971
Use:
This faster temperature (& humidity) chamber enables the application of high
Stress to the specimen at a steep temperature change rate of 5℃/min. or more. A temperature change rate of 5℃ /min. or more has been achieved from -75℃⇔+150℃, and from -18℃⇔+158℃, thanks to the larger refrigeration systems in this mode.It consists of cooling system,heating system,controlling system,air cycle system,sensor system.
Used in equipments, chemistry,plastic rubber, electron,food,frabic,metal, aerospace industry.Simulate the temperature fast temperature changing condition,to check the product performance if changed in this condition.
Specification:
Model | 80L | 150L | 225L | 408L | 500L | 1000L | ||
Inner size (mm) |
Deep | 400 | 500 | 500 | 600 | 700 | 1000 | |
Width | 400 | 500 | 600 | 800 | 800 | 1000 | ||
Height | 500 | 600 | 750 | 850 | 900 | 1000 | ||
Environment Requirement | 5~30℃,stable floor, draughty,no heat source radiation | |||||||
performance parameter | Temperatur range | -20~150℃ -30~150℃ -40~150℃ -50~150℃ -60~150℃ -70~150℃ | ||||||
Temperature uniformity | ±1.0℃ | |||||||
Temperature fluctuation | ±0.5℃ | |||||||
Heating Time | Max fastest 20℃/min(no-load) | |||||||
Cooling Time | 3℃/min,5℃/min,10℃/min,15℃/min(no-load) | |||||||
Appearance | cold-roll steel sheets, Corner circular arc | |||||||
Material | antirust | Good antirust function | ||||||
Inner container | SUS304/2B steel plates,inner containers designed by arc | |||||||
thermal insulation material | superfine glass heat preservation cotton or polyurethane foaming | |||||||
Motor heat dissipation | Chamber is deeper,with aerofoil fan, improve the motor heat dissipation | |||||||
Heater | stainless steel Fins heating element | |||||||
Observe Window | conducting film electric heating | |||||||
seal washer | Silica, sealing strips | |||||||
pressure fan | centrifugal impeller | |||||||
Cooling System | Compressor | France Taikang | ||||||
refrigeration | Mechanical compress single stage/ Cascade refrigeration,water refrigeration; | |||||||
condenser | Fins radiator,long-lived outer rotor motor | |||||||
refrigerating fluid | R23R404A | |||||||
configuration | Imported refrigeration configuration | |||||||
Controller | Programmable controller,7.2 inch LCD touched display,Chinese English menu,PID Seting,record automatically,support connecting computer by USB. | |||||||
Safety | earth leakage protection,motor overcurrent protection,compresor overpressure protection,high temperature protection...... | |||||||
configuration | Sample shelf,1pcs, ф50mm wire hole,1 pcs, floodlight 1pcs |
Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
Pictures:
