Product Details:
Payment & Shipping Terms:
|
MOTOR: | Panasonic Servo Motor | CONTROL: | PC |
---|---|---|---|
TEST SPEED: | 0.1-500mm/min Selectable | ACCURACY: | ±0.5% |
CAPACITY: | 5,10,20,25,50,100,200,500kg 1000 KG Optional | SENSOR: | USA Sensor |
APLICATION: | Rubber ,plastic ,nylon ,leather And Etc | DESIGN STANDARD: | ASTM D903,GB/T16491 And Etc |
GRIPS: | Different Material And Test Method With Different Grips | MAXIMUM TRIP: | 1000mm |
Highlight: | universal test equipment,universal tensile testing machine |

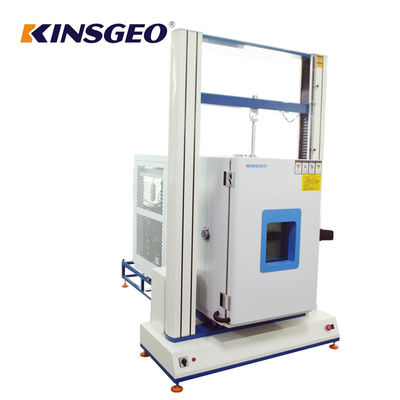

5,10,20,25,50,100,200,500kg 1000 KG Optional Tensile Compression Tester with Speed 0.1-500mm/min
Products Description
Universal Tensile Strength Testing Machine, Tensile Tester is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.
Application Industries
Universal Tensile Strength Testing Machine, Tensile Tester is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Main features of Universal Tensile Strength Testing Machine, Tensile Tester
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Specifications:
Capacity choice | 5,10,20,50,100,200,500,1000,2000,5000KG |
Stroke | 800mm(not including fixture) |
Test Speed | 0.5~1000mm/min |
Test range | 400mm MAX |
Weight | 180kg |
Dimention | 800mm×500mm×1500mm |
Accuracy | ±0.5% or better |
Operation method | Operation method |
Resolution | 1/150,000 |
Motor | servo motor |
Operation system | TM2101 |
Accessories | customized clamps by appointed, force sensors, , printer, and operation manual |
Power | 1Ø,220V/50HZ |
Safety Device:
Stroke protection | upper and low limit protection, prevent over preset |
Force protection | system setting |
Emergency stop device | Handling emergencies |
Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
